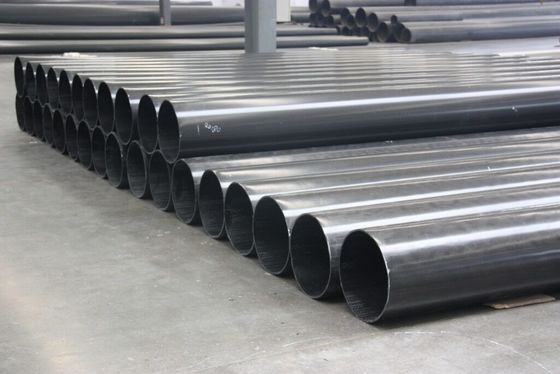

Wear Resistant Black Flecible UHMWPE Pipe S For Industrial Piping Systems

Product Description:

Ultra-high molecular weight polyethylene, commonly abbreviated as UHMWPE, is a type of thermoplastic used in engineering. It has an incredibly high viscosity-average molecular weight of more than 2.0 million. This high molecular weight gives UHMWPE its unique properties, making it an ideal material for various applications.

One particular area where UHMWPE excels is in the manufacturing of pipes. Ultra-high molecular weight polyethylene pipe is known for its superior performance over conventional HDPE material. It is tougher, more abrasion-resistant, and can handle greater impact without showing signs of damage. These characteristics make it a popular choice in industries that require durable and long-lasting piping solutions.

Features:

UHMWPE Pipe has exceptional wear resistance that is 4-7 times greater than Q235 Steel or 10 times that of HDPE (PE100) pipes under the same operating conditions. As a result, it offers far superior life under most operating conditions.

UHMWPE Pipe has a very smooth surface and self-lubricating properties, which gives it superior anti-scaling properties than any other pipeline on the market today. Its non-stick factor allows it to provide strength in the marine industry by preventing barnacle formation.

The collaboration of UHMWPE Pipe's wear resistance and weight reduction (0.93 SG) allows for increased time between pipe replacements and/or rotations while reducing installation management constraints of lifting gear and excavation requirements. This leads to lower maintenance costs, less maintenance time, less downtime, and less loss of production.

Aside from the benefits mentioned above, UHMWPE Pipes also offer significant cost savings through increased pumping efficiency. UHMWPE Pipe has a surface roughness of 0.00022mm and a friction coefficient of 0.05, compared to 0.28 for HDPE or 0.58 for Steel (ISO 8295). This means less friction, less pressure loss, and greatly reduced energy inputs to deliver the same result.

UHMWPE Pipe offers superior life to other pipeline products in acidic or corrosive applications under 85 degrees C. Its chemical resistance is second only to PTFE (Teflon).

The strength and flexibility of UHMWPE pipes provide many savings in installation costs. Its high compressive strength means reduced size or eliminating excavations (greater than 1.5x that of HDPE). It also has a combination of strength and flexibility (>250% tensile elongation), which means concrete bases are not required on wetlands and difficult terrain. Additionally, its high strength and flexibility provide greater protection against damage due to ground subsidence, earthquakes, or other unexpected movement and loading of the pipeline. Lastly, it can be laid directly on the seabed.

Technical Parameters:

Applications:

UHMWPE sand dredging pipe is one of the most common applications for this product. It is used in mining, dredging, and other industries where sand and other sediments need to be moved from one location to another. The UHMWPE material is well-suited for this application because it is highly wear-resistant and can withstand the abrasive forces of sand and other sediments.

Another common application for this product is UHMWPE floating pipeline. This type of pipeline is used in marine environments where a floating pipeline is necessary. The UHMWPE material is buoyant and can float on the surface of the water, making it ideal for this application.

The Easy Installation UHMWPE pipe is another advantage of this product. It is easy to install and requires minimal maintenance, which makes it a cost-effective solution for a variety of applications.

The Jiubei UHMWPE Pipe comes in a variety of sizes, ranging from 1/2'' to 48'' in diameter. It is available in black, white, blue, green, yellow, and other colors to meet the needs of different applications. The surface of the pipe is smooth or sandblasted, depending on the application requirements.

The packaging details for this product are standard sea worthy packaging, and the minimum order quantity is 100m. The price of this product is 5-8 USD/m, and the delivery time is 14 days. Payment terms include tt/lc, and the supply ability is 3000m/month. Accessories such as bolts, nuts, and washers are also available with this product.

Support and Services:

Our UHMWPE pipe product technical support team is available to assist with any questions or issues related to the product. We offer comprehensive technical support services, including installation guidance, troubleshooting, and product maintenance recommendations.

In addition, we provide a range of services to our customers, such as product testing, custom fabrication, and on-site support. Our goal is to ensure that our customers have the best possible experience with our UHMWPE pipe product and are fully satisfied with its performance and durability.

If you have any questions or concerns, please do not hesitate to contact our technical support team. We are here to help and are committed to providing the highest level of customer service.
