Hdpe Dredge Pipe For Sale Oil Sand Mud Discharge Flange End 24 Inches

MOQ: 100m
Price: usd50-500/m
Standard Packaging: Standard sea worthy packaging
Delivery Period: 7working days
Payment Method: L/C, T/T
Supply Capacity: 3000m/month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JiuBei
Certification
ISO
Name:
UHMWPE Lined Steel Pipe
Material:
Carbon Steel And UHMWPE
Color:
As Request
Dimension:
DN90~1200mm
Installation:
Steel Flange
Warranty:
12months
Thickness:
4~50mm
Alloy Or Not:
Yes
Outer Diameter(round):
90-1200mm
Application:
Mine Tailing Discharging
Highlight:

plastic dredging pipe

,

hdpe dredge pipe for sale

,

24 inch dredging pipe

Product Description

Ultra High Pressure Sand Dredging Mud Oil Water Mine Mining UHMWPE Pipe


UHMWPE pipes have been widely used in Mine Tailings Discharge, Sand & Slurry Dredging, Chemical Industry, Gas & Oil field etc.

1. Non-Toxic
UHMWPE pipe is Food grade, can be used for grain/flour transport.
2. Flexible
UHMWPE with Tensile Strength 500kg/cm², Elongation at Break 300%, so it can resistant to sudden bend ex. earth subsidence without break.
3. Easy to Handle
UHMWPE with light weight 1/8 of steel, so it is easy to handle. It's installation charge is only about 10% of pipe amount, while steel pipe is 20%.



O.D.

DN(mm)

 0.4MPa 0.6MPa 0.8MPa 1MPa 1.25MPa 1.65MPa 2.0MPa

Thickness

mm

Thickness

mm

Thickness

mm

Thickness

mm

Thickness

mm

Thickness

mm

Thickness

mm



110     4.7 6.0 7.4 9.2 11.4
125     5.4 6.7 8.3 10.3 12.7
140     6.0 7.7 9.5 11.8 14.6
160   5.2 6.9 8.6 10.7 13.3 16.4
180   5.9 7.7 9.6 11.9 14.7 18.2
219   6.5 8.6 10.8 13.4 16.6 20.5
225 4.9 7.3 9.7 11.9 14.8 18.4 22.7
250 5.5 8.1 10.7 13.4 16.6 20.6 25.4
280 6.2 9.1 12.0 15.0 18.7 23.2 28.6
315 6.9 10.2 13.5 16.9 21.1 26.1 32.2
350 7.8 11.5 15.3 19.1 23.7 29.4 36.3
400 8.8 13.0 17.2 21.5 26.7 33.1 40.9
450 9.8 14.6 19.1 13.9 29.7 36.8
500 11.0 16.2 21.4 26.7 33.2 41.2
560 12.3 18.2 24.1 30.0 37.4
630 13.8 20.5 27.2 33.9 42.1
700 15.3 22.7 30.6 38.1
800 18.0 26.0 38.1
900 20.0 30.0 42.1
1000 22.0 33.0

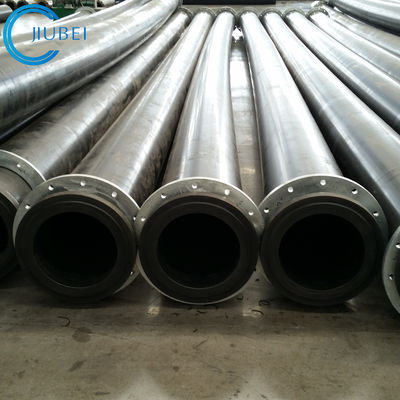

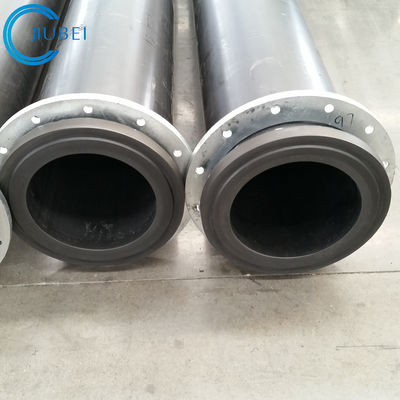

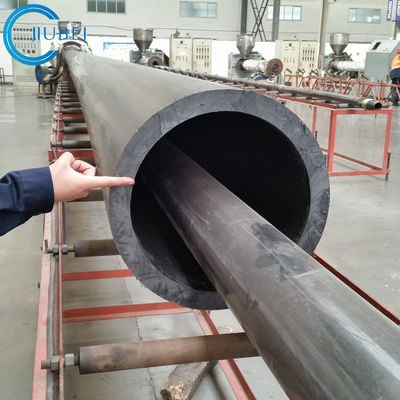

Detail images:
Hdpe Dredge Pipe For Sale Oil Sand Mud Discharge Flange End 24 Inches 0Hdpe Dredge Pipe For Sale Oil Sand Mud Discharge Flange End 24 Inches 1
