Product Details:
|
Name: | UHMWPE Lined Steel Pipe | Material: | Carbon Steel And UHMWPE |
---|---|---|---|
Color: | As Request | Dimension: | DN90~1200mm |
Installation: | Steel Flange | Warranty: | 12months |
Thickness: | 4~50mm | Alloy Or Not: | Yes |
Outer Diameter(round): | 90-1200mm | Application: | Mine Tailing Discharging |
Highlight: | Floating Dredge Pipe 12 Inch,dredger hydraulic pipes,dredging hdpe pipe |
Marine Dredging Sand Mud Oil Floater UHMWPE Pipe
Advantages of the UHMWPE pipe:
Extremely high wear resistance
2.Very high impact resistance
3.Corrosion resistance
4.Good self-lubrication
5.The unique resistance to low temperature
6.Not easy to form dirt
7.Long life-span
8.Easy installation
Usage: it is widely used in dredging, water supply, metallurgical mines, electric power, petroleum, natural gas, textiles, paper making, food, chemical industry, machinery, etc.
O.D. DN(mm) | 0.4MPa | 0.6MPa | 0.8MPa | 1MPa | 1.25MPa | 1.65MPa | 2.0MPa | |
Thickness mm | Thickness mm | Thickness mm | Thickness mm | Thickness mm | Thickness mm | Thickness mm | ||
110 | 4.7 | 6.0 | 7.4 | 9.2 | 11.4 | |||
125 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | |||
140 | 6.0 | 7.7 | 9.5 | 11.8 | 14.6 | |||
160 | 5.2 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | ||
180 | 5.9 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | ||
219 | 6.5 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | ||
225 | 4.9 | 7.3 | 9.7 | 11.9 | 14.8 | 18.4 | 22.7 | |
250 | 5.5 | 8.1 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | |
280 | 6.2 | 9.1 | 12.0 | 15.0 | 18.7 | 23.2 | 28.6 | |
315 | 6.9 | 10.2 | 13.5 | 16.9 | 21.1 | 26.1 | 32.2 | |
350 | 7.8 | 11.5 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | |
400 | 8.8 | 13.0 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | |
450 | 9.8 | 14.6 | 19.1 | 13.9 | 29.7 | 36.8 | ||
500 | 11.0 | 16.2 | 21.4 | 26.7 | 33.2 | 41.2 | ||
560 | 12.3 | 18.2 | 24.1 | 30.0 | 37.4 | |||
630 | 13.8 | 20.5 | 27.2 | 33.9 | 42.1 | |||
700 | 15.3 | 22.7 | 30.6 | 38.1 | ||||
800 | 18.0 | 26.0 | 38.1 | |||||
900 | 20.0 | 30.0 | 42.1 | |||||
1000 | 22.0 | 33.0 |

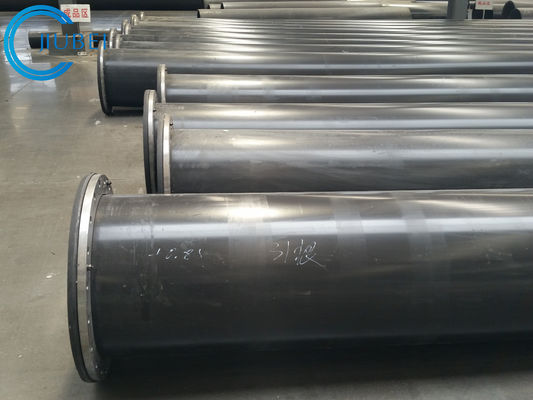

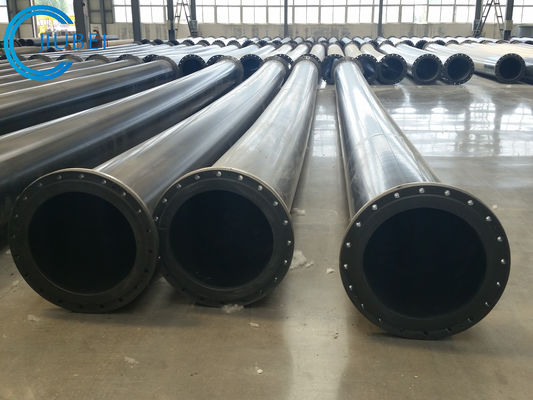

Detail images:
