Product Details:
|
Material: | UHMWPE | Connection: | Steel Flange |
---|---|---|---|
Length: | 5.8`11.8m/length | Diameter: | DN50~DN1200 |
MOQ: | 100m | Benefit: | Wear Resistant, Long Life Using |
Highlight: | uhmw pipe,uhmwpe pipe manufacturers,UHMWPE slurry pipe |

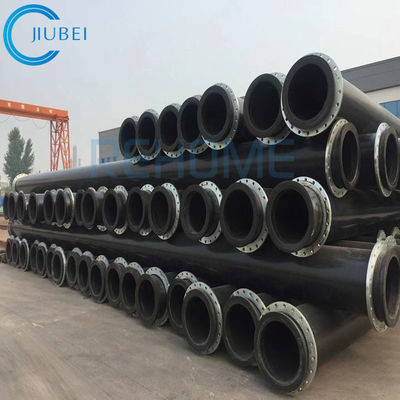

High Impact Resistance UHMWPE Pipe for Crude Oil and Sewage
Product launch:
18" UHMWPE pipe is a thermoplastic engineering plastic with a viscosity-average molecular weight greater than 1.5 × 106, and is obtained by polymerization of ethylene under the action of a catalyst. Its molecular weight has reached over 5 million, its five properties of abrasion, impact and Corrosion resistance, self-lubrication, and absorption of impact energy are the best among available plastics.It is considered the world's “marvelous plastic” UHMWPE, a new star of materials, presenting a vigorous life and playing an important part in many regions of national economy.
Product Features:
1. Anti abrasion: Under the same example, the large lost is only the 1/7 of steel pipes.
2. Anti high pressure: it is under the press Mpa to 4.0Mpa.
3. Anti-corrosion very well because of the solid structure.
4. From lubrication: the abrasion is the least among all pipe materials, under the same conditions, the pressure lost is only the steel pipe-ends 1/10 and only the nylon 1/7.
5. Non-scaling: the internal wall is so slippery that the medium cannot deposit on it.
6. Light weight: the density is the 1/8 of the steel, it is easy to convey and install.
7. Available to connection: it is by flange or hoop, convenient to install.
8. Anti-aging: there is anti-ultraviolet radiation material in the tubes, can last over 50 years under the hot sun.
9. Temperature: the tube can be between -70°C to 85°C.
10. Long service life: under the same conditions, the service life of used steel pipe ends is 7 times.
11. Health & Safety: This type pipes is harmless and recycling.
Product Applications
1. To transport sand and mud and slurry in river/habor/seawater dredging industry.
2. To transport tailings and manure, metallurgical mines, in the mining industry
3. To transport powder and coal ash into thermal power station
4. To transport pulverized coal and coal-water sludge from coal processing plant in coal industry
5. To transport sludge and corrosive media containing slag in the chemical industry
6. To transport crud oil, petroleum, food and natural gas
UHMWPE Pipe Specification
O.D. |
0.4MPa | 0.6MPa | 0.8MPa | 1MPa | 1.25MPa | 1.65MPa | 2.0MPa | |
Thickness |
Thickness |
Thickness |
Thickness |
Thickness |
Thickness |
Thickness |
||
110 | 4.7 | 6.0 | 7.4 | 9.2 | 11.4 | |||
125 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | |||
140 | 6.0 | 7.7 | 9.5 | 11.8 | 14.6 | |||
160 | 5.2 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | ||
180 | 5.9 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | ||
219 | 6.5 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | ||
225 | 4.9 | 7.3 | 9.7 | 11.9 | 14.8 | 18.4 | 22.7 | |
250 | 5.5 | 8.1 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | |
280 | 6.2 | 9.1 | 12.0 | 15.0 | 18.7 | 23.2 | 28.6 | |
315 | 6.9 | 10.2 | 13.5 | 16.9 | 21.1 | 26.1 | 32.2 | |
350 | 7.8 | 11.5 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | |
400 | 8.8 | 13.0 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | |
450 | 9.8 | 14.6 | 19.1 | 13.9 | 29.7 | 36.8 | ||
500 | 11.0 | 16.2 | 21.4 | 26.7 | 33.2 | 41.2 | ||
560 | 12.3 | 18.2 | 24.1 | 30.0 | 37.4 | |||
630 | 13.8 | 20.5 | 27.2 | 33.9 | 42.1 | |||
700 | 15.3 | 22.7 | 30.6 | 38.1 | ||||
800 | 18.0 | 26.0 | 38.1 | |||||
900 | 20.0 | 30.0 | 42.1 | |||||
1000 | 22.0 | 33.0 |
Lower Coefficient of Friction
The UHMWPE material is regarded as the ideal cost/performance abrasive resistant material in the tribology field. With good friction coefficient of 0.07-0.11, and good self lubrication, the UHMWPE material will be difficult to have sea growth.
Material |
No Lubrication |
Water Lubrication |
Oil Lubrication |
UHMWPE | 0.1-0.22 | 0.05-0.1 | 0.05-0.08 |
PTFE | 0.04-0.25 | 0.04-0.08 | 0.04-0.05 |
POM | 0.15-0.35 | 0.1-0.20 | 0.05-0.10 |
Nylon 66 | 0.15-0.40 | 0.14-0.19 | 0.02-0.11 |
