Product Details:
|
| Name: | UHMWPE Lined Steel Pipe | Material: | Carbon Steel And UHMWPE |
|---|---|---|---|
| Color: | As Request | Dimension: | DN90~1200mm |
| Installation: | Steel Flange | Warranty: | 12months |
| Thickness: | 4~50mm | Alloy Or Not: | Yes |
| Outer Diameter(round): | 90-1200mm | Application: | Mine Tailing Discharging |
| High Light: | hdpe dredge pipe for sale,suction dredge pipe,pipeline dredger |
||
China Float Sand Mud Marine Dredger Industry UHMWPE Pipe
UHMWPE pipes have been widely used in Mine Tailings Discharge, Sand & Slurry Dredging, Chemical Industry, Gas & Oil field etc.
UHMWPE Pipe:
1. High Flow-Rate
UHMWPE pipe's Frication Coefficient is 1/6 of steel pipe, Flow-Rate is 50% higher than steel pipe. That means you can use smaller diameter UHMWPE pipe for same flowing capacity, more convenient and more cheaper.
2.Resistant to Scale and Scale Build up
UHMWPE has outstanding Resistance to Scale and Scale Build up, that keep long term smooth inner face, means long term High Flow-Rate. And decrease cleaning charge.
3.Unique Resistance to Low Temperature
UHMWPE pipe with Working temperature -269 to 80 degrees Celsius, can maintain High Impact Strength even in low temperature as -196 centigrade.
|
O.D. DN(mm) |
0.4MPa | 0.6MPa | 0.8MPa | 1MPa | 1.25MPa | 1.65MPa | 2.0MPa | |
|
Thickness mm |
Thickness mm |
Thickness mm |
Thickness mm |
Thickness mm |
Thickness mm |
Thickness mm |
||
| 110 | 4.7 | 6.0 | 7.4 | 9.2 | 11.4 | |||
| 125 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | |||
| 140 | 6.0 | 7.7 | 9.5 | 11.8 | 14.6 | |||
| 160 | 5.2 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | ||
| 180 | 5.9 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | ||
| 219 | 6.5 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | ||
| 225 | 4.9 | 7.3 | 9.7 | 11.9 | 14.8 | 18.4 | 22.7 | |
| 250 | 5.5 | 8.1 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | |
| 280 | 6.2 | 9.1 | 12.0 | 15.0 | 18.7 | 23.2 | 28.6 | |
| 315 | 6.9 | 10.2 | 13.5 | 16.9 | 21.1 | 26.1 | 32.2 | |
| 350 | 7.8 | 11.5 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | |
| 400 | 8.8 | 13.0 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | |
| 450 | 9.8 | 14.6 | 19.1 | 13.9 | 29.7 | 36.8 | ||
| 500 | 11.0 | 16.2 | 21.4 | 26.7 | 33.2 | 41.2 | ||
| 560 | 12.3 | 18.2 | 24.1 | 30.0 | 37.4 | |||
| 630 | 13.8 | 20.5 | 27.2 | 33.9 | 42.1 | |||
| 700 | 15.3 | 22.7 | 30.6 | 38.1 | ||||
| 800 | 18.0 | 26.0 | 38.1 | |||||
| 900 | 20.0 | 30.0 | 42.1 | |||||
| 1000 | 22.0 | 33.0 |

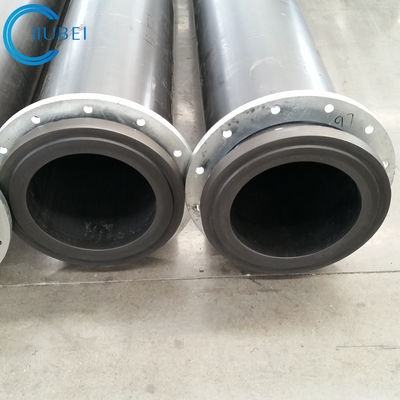

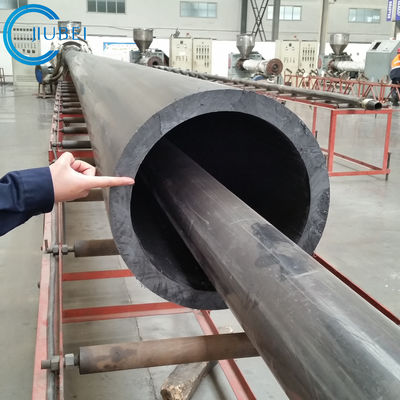

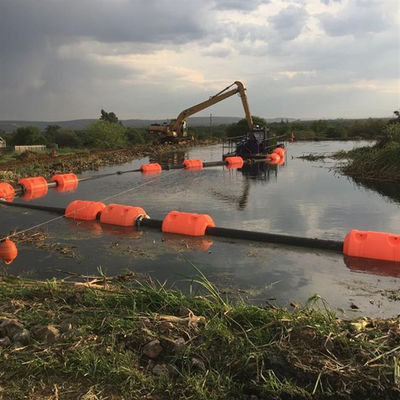

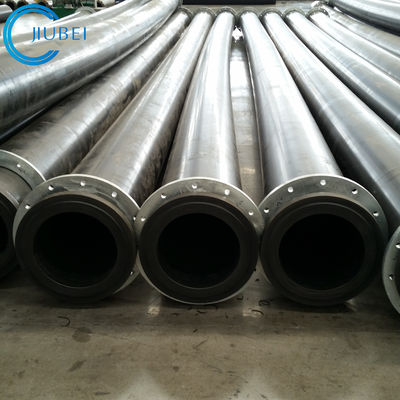

Detail images:
