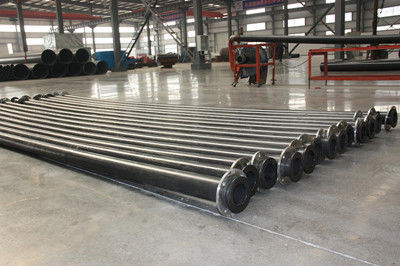

Wear Resistant UHMWPE Pipe With Flanged Connections And Accessories

Product Description:

Ultra-high molecular weight polyethylene (UHMWPE) is a type of engineering thermoplastic that boasts of more than 2.0 million viscosity-average molecular weight. Compared to conventional HDPE material, UHMWPE pipe displays superior performance. The high viscosity molecular weight makes UHMWPEs tougher than standard HDPEs, resulting in improved wear resistance and impact strength.

UHMWPE pipes are commonly used in industries that require long lasting and durable materials like mining, marine, and food processing. Thanks to their superior performance, they have a longer lifespan, reduce maintenance costs, and decrease downtime.

Additionally, UHMWPE pipes demonstrate excellent chemical and corrosion resistance. They have a low coefficient of friction allows products to pass through them easily without obstruction.

There are many advantages to using UHMWPE pipes. They are lightweight, yet strong and long-lasting, with excellent anti-wear properties. They are resistant to corrosion, chemicals, and have a low coefficient of friction. These features make UHMWPE pipes a popular choice for a wide range of industrial applications.

Ultra-high molecular weight polyethylene (UHMWPE) is a type of engineering thermoplastic that boasts of more than 2.0 million viscosity-average molecular weight. Compared to conventional HDPE material, UHMWPE pipe displays superior performance . The high viscosity molecular weight makes UHMWPEs tougher than standard HDPEs, resulting in improved wear resistance and impact strength.

UHMWPE pipes are commonly used in industries that require long lasting and durable materials like mining, marine, and food processing. Thanks to their superior performance, they have a longer lifespan, reduce maintenance costs, and decrease downtime.

Additionally, UHMWPE pipes demonstrate excellent chemical and corrosion resistance. They have a low coefficient of friction allows products to pass through them easily without obstruction.

There are many advantages to using UHMWPE pipes. They are lightweight, yet strong and long-lasting, with excellent anti-wear properties. They are resistant to corrosion, chemicals, and have a low coefficient of friction. These features make UHMWPE pipes a popular choice for a wide range of industrial applications.

Features:

UHMWPE Pipe offers a wear resistance 4 to 7 times greater than Q235 Steel or 10 times that of HDPE (PE100) pipes under the same operating conditions. This superior wear resistance means that the UHMWPE pipe provides far better life expectancy under most operating conditions than other pipeline products.

One of the advantages of UHMWPE Pipe is its very smooth surface and self-lubricating properties. These properties give UHMWPE Pipe a superior anti-scaling performance compared to any other pipeline on the market today. Due to its non-stick factor, it exhibits exceptional strength in the marine industry by preventing barnacle formation.

The superior collaboration between wear resistance and weight reduction (0.93 SG) means that UHMWPE Pipe's life between replacements and/or rotations can be increased. It simultaneously reduces installation management constraints of lifting gear and excavation requirements, resulting in reduced maintenance costs, less maintenance time, less downtime, and less loss of production.

UHMWPE Pipes offer significant cost savings through increased pumping efficiency. With a surface roughness of 0.00022mm, UHMWPE Pipe is extremely smooth and offers resultant properties that are superior to PTFE (Teflon). For example, UHMWPE has a friction coefficient of 0.05, compared to 0.28 for HDPE or 0.58 for Steel (ISO 8295). This means less friction, less pressure loss, and greatly reduced energy inputs to deliver the same result.

UHMWPE pipe has chemical resistance second only to PTFE (Teflon). Therefore, it provides superior life expectancy to other pipeline products in acidic or corrosive applications under 85 degrees C.

UHMWPE pipes have considerable strength, offering many savings in installation costs:

• High compressive strength means reduced size or eliminating excavations (greater than 1.5x than HDPE)
• Combination of strength and flexibility (>250% tensile elongation) means concrete bases are not required on wetlands and difficult terrain
• High strength and flexibility provide greater protection against damage due to ground subsidence, earthquakes, or other unexpected movement and loading of the pipeline.
• The pipe can be laid directly on the seabed.

Technical Parameters:

Light weight UHMWPE pipe, easy installation UHMWPE pipe, light weight UHMWPE pipe.

Applications:

The UHMWPE pipe is known for its high wear resistance and high impact strength, making it an ideal choice for various industrial applications. The product is suitable for use in mining, oil and gas, and sand/slurry dredging applications. The product's high wear resistance makes it perfect for use in abrasive environments, such as mines and dredging sites, where other pipes may wear out quickly.

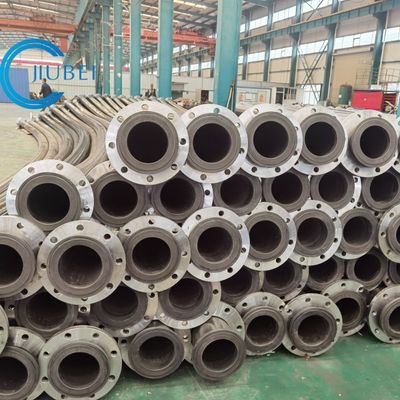

The large diameter UHMWPE pipe is available with flange, thread, socket, and other connection types. This allows for easy installation and maintenance, reducing downtime and increasing efficiency. The flanged UHMWPE pipe is particularly useful for sand dredging applications, as it can be easily connected to the sand pumping system.

The UHMWPE pipe is packed using standard sea-worthy packaging and can be delivered within 14 days. Payment terms include TT/LC, and the product has a supply ability of 3000m/month. With its high strength and durability, the UHMWPE pipe is a reliable and cost-effective solution for various industrial applications.

Support and Services:

Our UHMWPE pipe product comes with comprehensive technical support and services to ensure that you have the necessary information and assistance to properly install and maintain your system. Our team of experts can provide guidance on pipe selection, installation techniques, and troubleshooting any issues that may arise. In addition, we offer on-site training and support to ensure that your team is equipped with the knowledge and skills to operate the system safely and efficiently. Our services also include regular maintenance and inspection programs to ensure that your system is performing at its best and to identify any potential issues before they become major problems.
