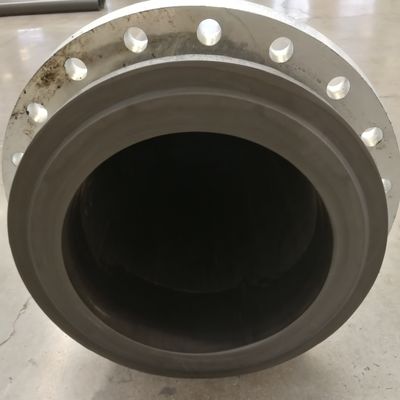

Wear Resistant UHMWPE Pipes With Flanges Accessories

Product Description:

Ultra-high molecular weight polyethylene (UHMWPE) is an innovative thermoplastic for engineering purposes, which has more than 2.0 million viscosity-average molecular weight. This elevated molecular weight enhances the physical properties of the material, making it more durable and strong. UHMWPE is quite an exceptional plastic, which is why it has become so popular among various industries.

Ultra-high molecular weight polyethylene pipes outperform conventional HDPE material in various ways. Due to its enhanced strength, they are more efficient in providing a pipeline solution for various fluids. UHMWPE pipes have superior abrasion resistance, which means they can handle fluids with abrasive properties. They are highly resistant to chemicals, minimizing chances of corrosion, making them a perfect fit for industrial use. The design of UHMWPE pipes ensures that there will be minimal deposition and fouling, which leads to higher flow rates and less maintenance time.

UHMWPE pipes are highly versatile and can be used for various applications, including water treatment, waste management, mining, chemical processing, and oil and gas transportation. Some industries that often call upon the usage of these pipes are food and beverage, semiconductor, paper, and medical.

Features:

UHMWPE Pipe offers far superior life under most operating conditions. With a wear resistance 4 to 7 greater than Q235 and 10 times that of HDPE pipes, UHMWPE is built to last. Its very smooth surface and self-lubricating properties give it superior anti-scaling properties over other pipeline materials. This non-stick factor also prevents barnacle formation, making it an ideal choice for marine applications.

With UHMWPE Pipe, you'll enjoy lower maintenance costs, less maintenance time, less downtime, and less loss of production. Its superior wear resistance and weight reduction means that the time between pipe replacements and/or rotations can be increased while reducing installation management constraints of lifting gear and excavation requirements.

In addition to the above benefits, UHMWPE Pipes also offer significant cost savings through increased pumping efficiency. With a surface roughness of 0.00022mm, UHMWPE Pipe is extremely smooth and has properties superior to PTFE (Teflon). With a friction coefficient of 0.05, UHMWPE has less friction, less pressure loss, and greatly reduced energy inputs to deliver the same result compared to HDPE or Steel (ISO 8295).

UHMWPE Pipe also offers chemical and corrosion resistance second only to PTFE (Teflon). It offers superior life to other pipeline products in acidic or corrosive applications under 85 degrees Celsius.

One of the biggest advantages of UHMWPE Pipe is its lower installation costs. Its high compressive strength means reduced size or elimination of excavations (greater than 1.5x that of HDPE). The combination of strength and flexibility (>250% tensile elongation) makes concrete bases unnecessary on wetlands and difficult terrain. Its high strength and flexibility also provide greater protection against damage due to ground subsidence, earthquakes, or other unexpected movement and loading of the pipeline. Lastly, UHMWPE Pipe can be laid directly on the seabed, making it easier to install and less expensive.

Technical Parameters:

Applications:

The UHMWPE pipes are highly wear-resistant, thanks to their high impact strength and thickness of 3-50mm. These pipes can withstand temperatures as low as -40℃ and as high as 80℃, making them suitable for use in a wide range of applications. Additionally, these pipes can be connected using flanges, threads, sockets and other similar methods.

These pipes are suitable for a range of product application occasions and scenarios. They can be used in industries such as mining, dredging, chemical processing, and water treatment. In the mining industry, these pipes can be used for slurry transportation, while in the dredging industry, they can be used for sand and mud transportation. In chemical processing, these pipes can be used for transporting corrosive chemicals, and in water treatment, they can be used for transporting wastewater and sewage.

The UHMWPE pipes are advantageous over other types of pipes as they offer high wear resistance, making them ideal for use in applications that require frequent transportation of abrasive materials. Additionally, they are flexible, making them easy to install and maintain. The pipes come in diameters ranging from 1/2''-48'' and can be fitted with flanges, making them suitable for use in a range of installation scenarios.

With a supply ability of 3000m/month and a delivery time of 14 days, the Jiubei brand offers a reliable and efficient supply of high-quality UHMWPE pipes. The payment terms for these pipes are TT/LC, making it easy for customers to purchase them.

Support and Services:

Our UHMWPE Pipe product comes with comprehensive technical support and services to ensure optimal performance and longevity. Our team of experts is available to provide guidance on product selection, installation, and maintenance. We offer on-site training for proper installation and use, as well as troubleshooting and repair services to quickly resolve any issues that may arise. Additionally, we provide testing and analysis services to evaluate product performance and make recommendations for improvements. Our goal is to ensure our customers receive the highest level of support and satisfaction with our UHMWPE Pipe product.
