DN300 Round UHMWPE Dredging Pipe 20 - 610mm Outer Diameter

Certification
China Shandong Jiubei Trading Co., Ltd certification
Customer Reviews
Very good quality pipe float, and wonderful service!

—— Abdulla

The rubber hose works very good, thank you!

—— Yaniv

Very good quality UHMWPE pipeline, excellent wear resistant ability, suitable for dredging and mining.

—— Arthur

I'm Online Chat Now

DN300 Round UHMWPE Dredging Pipe 20 - 610mm Outer Diameter

DN300 Round UHMWPE Dredging Pipe 20 - 610mm Outer Diameter
DN300 Round UHMWPE Dredging Pipe 20 - 610mm Outer Diameter
DN300 Round UHMWPE Dredging Pipe 20 - 610mm Outer Diameter DN300 Round UHMWPE Dredging Pipe 20 - 610mm Outer Diameter DN300 Round UHMWPE Dredging Pipe 20 - 610mm Outer Diameter DN300 Round UHMWPE Dredging Pipe 20 - 610mm Outer Diameter

Large Image :  DN300 Round UHMWPE Dredging Pipe 20 - 610mm Outer Diameter

Product Details:
Place of Origin: China
Brand Name: Jiubei
Certification: SGS
Model Number: DN300 UHMWPE Dredging Pipe
Payment & Shipping Terms:
Minimum Order Quantity: 100m
Price: usd5/m
Packaging Details: Standard sea worthy packaging
Delivery Time: 5-8working days
Payment Terms: L/C, T/T
Supply Ability: 3000m/month

DN300 Round UHMWPE Dredging Pipe 20 - 610mm Outer Diameter

Description
Features: High Wear Resistance, Anti Corrosion, Thickness: Customized
Outer Diameter(round): 20 - 610 Mm Length: Customized
Application: Dredging And Mining Industry Color: White/black
Connection: Steel Flanges Material: UHMWPE
Packaging: Wooden Case Pressure Rating: 0.4-2.0Mpa
Shape: Round Size: Customized
Surface: Ultra Smooth Temperature Rating: Normal Temperature
High Light:

Round UHMWPE Dredging Pipe

,

DN300 Dredging Pipe

,

20mm Outer Diameter UHMWPE Pipe



DN300 UHMWPE Dredging Pipe



UHMWPE dredging pipe material is UHMWPE --- Ultra-high molecular weight polyethylene (UHMWPE) is a new kind of engineering thermoplastics with more than1.5 million viscosity-average molecular weight. The UHMWPE pipe is extruded out with the extruding machine with the UHMWPE raw material .



DN300 UHMWPE dredging pipe dimension:



Outside dismeter 360mm
Inside Diameter  310mm
Wall thickness 25mm
Length 11.8m/unit
Working pressure 1.0Mpa
Connection  Steel flanges

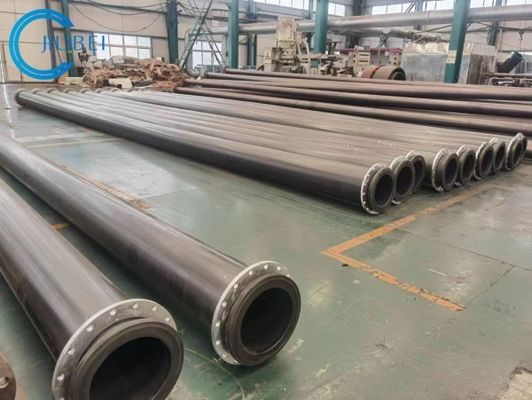

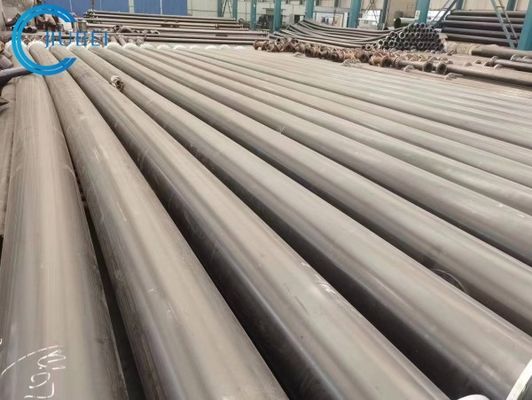

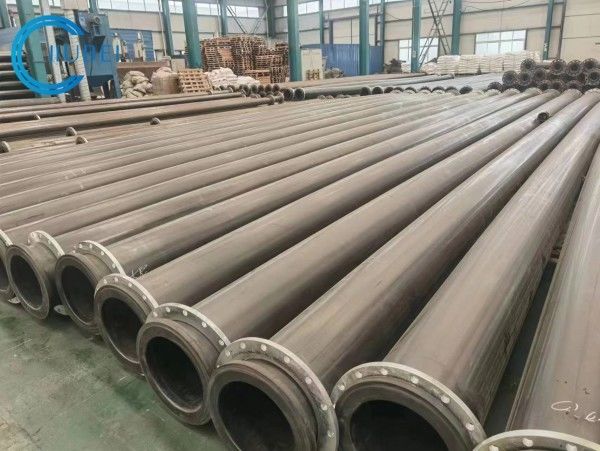

DN300 UHMWPE dredging pipe pictures:



DN300 Round UHMWPE Dredging Pipe 20 - 610mm Outer Diameter 0







DN300 Round UHMWPE Dredging Pipe 20 - 610mm Outer Diameter 1



Benefits of DN300 UHMWPE dredging pipe:



a. High Wear Resistance

High wear resistance is 4 to 7 times that of Q235 steel pipe and 2.7 times that of wear-resistant steel 16Mn.The working life of UHMWPE pipes is more than 3 times that of wear-resistant steel pipe.

b. High Corrosion Resistance

UHMWPE material structure is saturated molecular group, with great chemical stability,good resistance of various corrosion mediums(acid,alkali,salt)and organic solvents.

c. High Impact Resistance

Which is 5 times that of HDPE pipe, 2 times that of PC pipe and 10 times that of PTFE pipes. which makes UHMWPE pipe can withstand great water hammer impact when starting up pump station.

d. High Pressure Resistance

which is 2 times to that of PE100 pipe and 2.5 times to that of PE80.UHMWPE pipe can withstand wide fluctuate of water pressure in the pipeline.

e. Environment Proctection

The manufacturing and processing of wear resistant UHMWPE pipe is low carbon,without wasted water,exhausted gas and waste residue,which saves 20% energy compare with the traditional steel pipes.

f. High Flexibility

With high toughness and elongation of no less than 350%,the UHMWPE pipe and the connection site will not crack when crust settling which maximally ensure to supply water normally.

g. Non-scaling

With toughness of 0.00022 and smooth pipe inner wall, it can efficiently avoid scaling without acid cleaning,which save a lot of maintenance cost.

h. Low energy consumption

Its coefficient of friction resistance is 0.009 while that of steel pipe is 0.013. With the same diameter, flow rate of UHMWPE pipe is large than steel pipe, and with the same flow rate,UHMWPE pipe can save 25% energy.



Installation of the DN300 UHMWPE dredging pipeline:



DN300 Round UHMWPE Dredging Pipe 20 - 610mm Outer Diameter 2DN300 Round UHMWPE Dredging Pipe 20 - 610mm Outer Diameter 3
