PRODUCTS DETAILS

Home > Products >

Dredging Floating Pipeline Materials Sand Dredging Mud Oil Water Mine Uhmw Pipe

Products

Dredging Floating Pipeline Materials Sand Dredging Mud Oil Water Mine Uhmw Pipe

MOQ:	100m
Price:	usd50-500/m
Standard Packaging:	Standard sea worthy packaging
Delivery Period:	7working days
Payment Method:	L/C, T/T
Supply Capacity:	3000m/month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

JiuBei

Certification

ISO

Name:

UHMWPE Lined Steel Pipe

Material:

Carbon Steel And UHMWPE

Color:

As Request

Dimension:

DN90~1200mm

Installation:

Steel Flange

Warranty:

12months

Thickness:

4~50mm

Alloy Or Not:

Yes

Outer Diameter(round):

90-1200mm

Application:

Mine Tailing Discharging

Highlight:

dredging floating pipeline

dredging pipeline materials

dredging pipeline

Product Description

Sand Dredging Mud Oil Water Mine UHMWPE Pipe

Ultra High Molecular Weight Polyethylene (UHMWPE) pipe is a kind of thermoplastic engineering plastic pipe with a molecular weight of over 2.5 million viscosity. UHMWPE is called "excellent plastic", a new material star. It will manifest a strong life and play an important role in many fields.
Main Attribute:
1.extremely high wear resistance;
2. Very high impact strength;
3. good self-lubricating;
4. not easy to dirty;
5. Good corrosion resistance;
6 .High tensile strength and tensile strength;
7. Unique low temperature resistance;
8. long service life;
9. easy installation.

areas of application:
1.For transporting sand, mud and river mud, port, dredging sea water;
2. Transporting scum and sludge in metallurgical mines and mining industry;
3. Transporting powdered coal ash and slag in thermal power plants 4. Transporting crushed coal and coal water slurry of coal processing plants;
5. Transporting sludge, corrosive substances containing slag in the chemical industry;
6 .To transport crude oil, oil and food.

O.D. DN(mm)	0.4MPa	0.6MPa	0.8MPa	1MPa	1.25MPa	1.65MPa	2.0MPa
	Thickness mm	Thickness mm	Thickness mm	Thickness mm	Thickness mm	Thickness mm	Thickness mm
	Thickness mm	Thickness mm	Thickness mm	Thickness mm	Thickness mm	Thickness mm	Thickness mm
110			4.7	6.0	7.4	9.2	11.4
125			5.4	6.7	8.3	10.3	12.7
140			6.0	7.7	9.5	11.8	14.6
160		5.2	6.9	8.6	10.7	13.3	16.4
180		5.9	7.7	9.6	11.9	14.7	18.2
219		6.5	8.6	10.8	13.4	16.6	20.5
225	4.9	7.3	9.7	11.9	14.8	18.4	22.7
250	5.5	8.1	10.7	13.4	16.6	20.6	25.4
280	6.2	9.1	12.0	15.0	18.7	23.2	28.6
315	6.9	10.2	13.5	16.9	21.1	26.1	32.2
350	7.8	11.5	15.3	19.1	23.7	29.4	36.3
400	8.8	13.0	17.2	21.5	26.7	33.1	40.9
450	9.8	14.6	19.1	13.9	29.7	36.8
500	11.0	16.2	21.4	26.7	33.2	41.2
560	12.3	18.2	24.1	30.0	37.4
630	13.8	20.5	27.2	33.9	42.1
700	15.3	22.7	30.6	38.1
800	18.0	26.0	38.1
900	20.0	30.0	42.1
1000	22.0	33.0

Detail images:

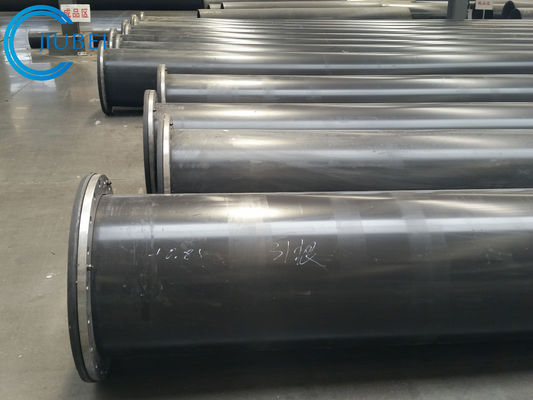

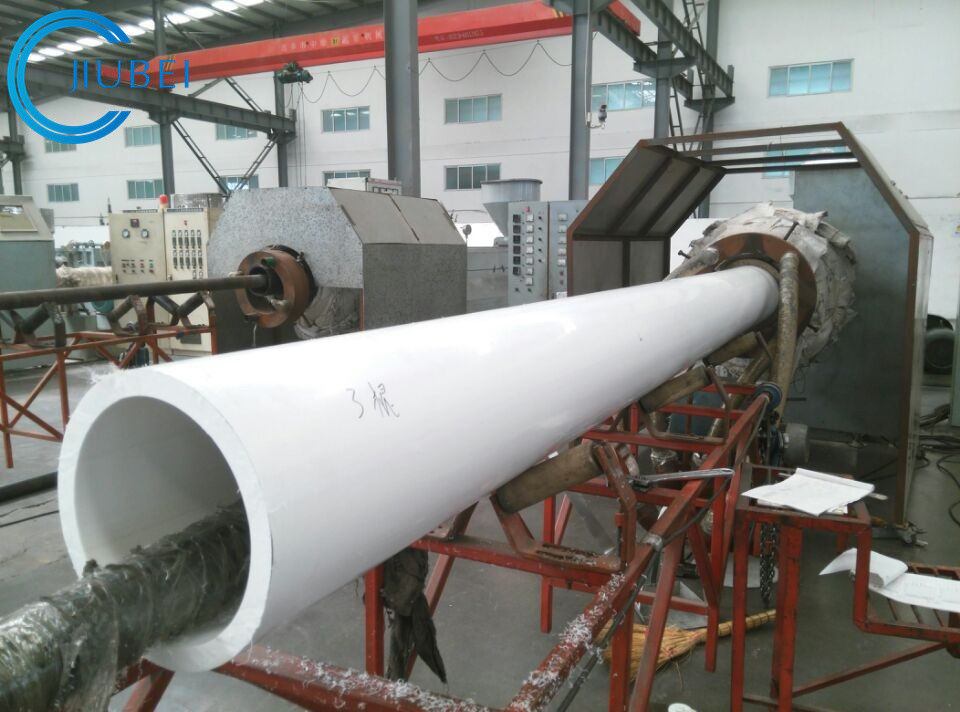

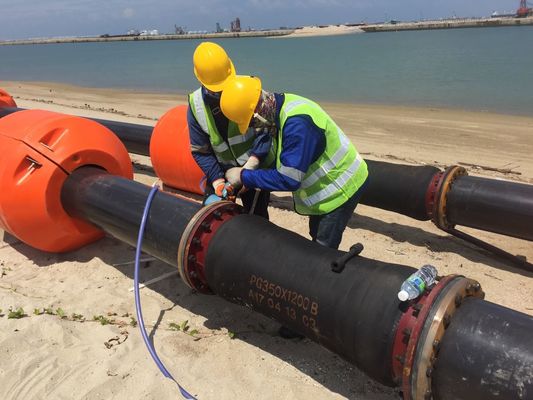

Dredging Floating Pipeline Materials Sand Dredging Mud Oil Water Mine Uhmw Pipe 0
