Product Details:
|
Name: | UHMWPE Pipe | Material: | Carbon Steel And UHMWPE |
---|---|---|---|
Color: | As Request | Dimension: | DN90~1200mm |
Installation: | Steel Flange | Warranty: | 12months |
Thickness: | 4~50mm | Alloy Or Not: | Yes |
Outer Diameter(round): | 90-1200mm | Application: | Mine Tailing Discharging |
High Light: | Customized UHMWPE Pipe,UHMWPE Pipe plastic,uhmw plastic tube |
UHMWPE usually refers to the linear polyethylene with a viscosity average molecular weight more than 2 million Dalton
Reduced installation costs
The strength of UHMWPE pipe can result in many savings in installation costs:
pipe
High compressive strength means small size or no excavation (more than 1.5 times higher than HDPE)
Combination of strength and flexibility (> 250% tensile strength). Strength) Elongation) means no concrete foundations are required in wet areas and rough terrain
High strength and flexibility provide better protection against damage from subsidence, earthquakes or other unexpected pipeline movements and loads
Can be laid directly on the seabed
Extremely high impact resistance
UHMWPE has the highest impact strength of all plastics. UHMWPE is commonly used in the manufacture of body armor and body armor. It has recently become popular in the medical field for hip replacement because of its strength and surface roughness/lubricity properties.
Environmentally friendly
Base material is colorless, odorless and non-toxic
Low-emission manufacturing process.The manufacturing process of UHMWPE produces only a 15% carbon footprint compared to the equivalent amount of steel tubing with no wastewater, fume or waste disposal
No paint. It can be made in any color. Price
Despite its tremendous advantage over any other polyethylene, pipe & Buy Australia still intends to compete in the market. With the help of patent-holding partners (the only UHMWPE manufacturer with a patent), our process technology is such that the price of this product is similar to HDPE
. Combine all these superlatives and consider the huge savings in “total pumping costs”. ". and we believe that UHMWPE should always be the first consideration when choosing a piping product.
Dimension:
O.D. |
0.4MPa | 0.6MPa | 0.8MPa | 1MPa | 1.25MPa | 1.65MPa | 2.0MPa | |
Thickness |
Thickness |
Thickness |
Thickness |
Thickness |
Thickness |
Thickness |
||
110 | 4.7 | 6.0 | 7.4 | 9.2 | 11.4 | |||
125 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | |||
140 | 6.0 | 7.7 | 9.5 | 11.8 | 14.6 | |||
160 | 5.2 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | ||
180 | 5.9 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | ||
219 | 6.5 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | ||
225 | 4.9 | 7.3 | 9.7 | 11.9 | 14.8 | 18.4 | 22.7 | |
250 | 5.5 | 8.1 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | |
280 | 6.2 | 9.1 | 12.0 | 15.0 | 18.7 | 23.2 | 28.6 | |
315 | 6.9 | 10.2 | 13.5 | 16.9 | 21.1 | 26.1 | 32.2 | |
350 | 7.8 | 11.5 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | |
400 | 8.8 | 13.0 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | |
450 | 9.8 | 14.6 | 19.1 | 13.9 | 29.7 | 36.8 | ||
500 | 11.0 | 16.2 | 21.4 | 26.7 | 33.2 | 41.2 | ||
560 | 12.3 | 18.2 | 24.1 | 30.0 | 37.4 | |||
630 | 13.8 | 20.5 | 27.2 | 33.9 | 42.1 | |||
700 | 15.3 | 22.7 | 30.6 | 38.1 | ||||
800 | 18.0 | 26.0 | 38.1 | |||||
900 | 20.0 | 30.0 | 42.1 | |||||
1000 | 22.0 | 33.0 |
Mechanical Property of UHMWPE material:
|
|
|
HDPE |
|
ASTM D4020 |
|
0.3~0.5million |
|
ASTM D792 | 0.94 | 0.94 |
Tensile Strength(Mpa) |
ASTM D638 | 32 | 20 |
|
ASTM D638 | 500 | 350 |
|
ASTM D2240 | 67 | 59 |
|
ASTM D3418 | 136 | 100 |

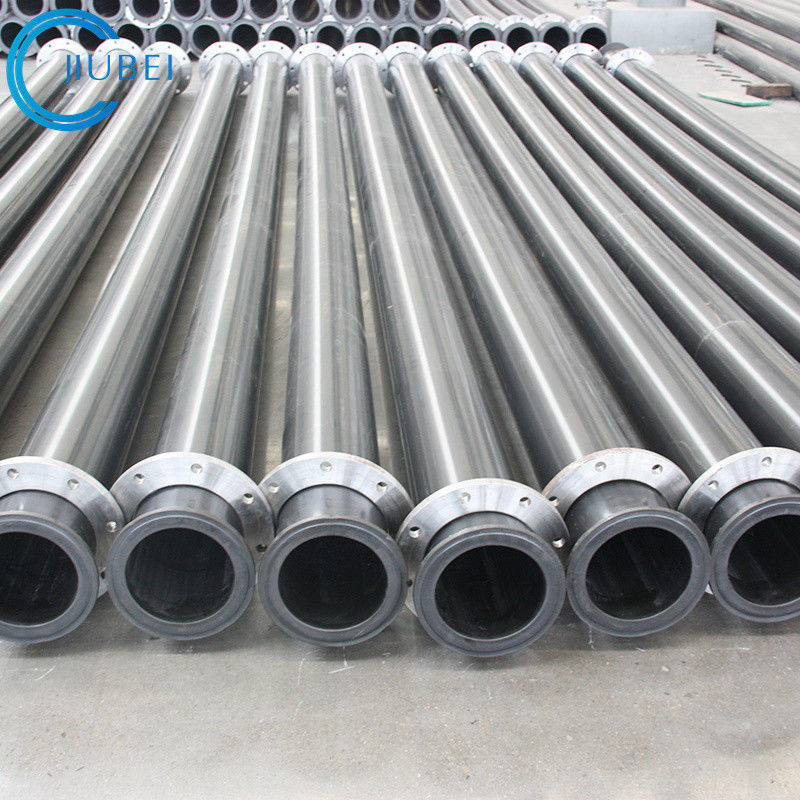

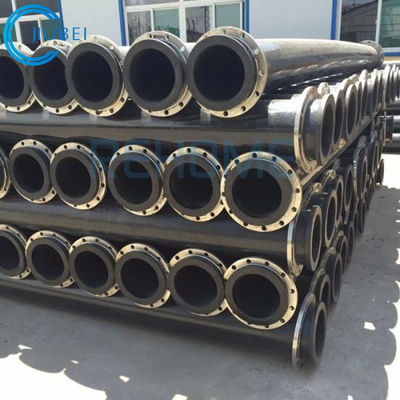

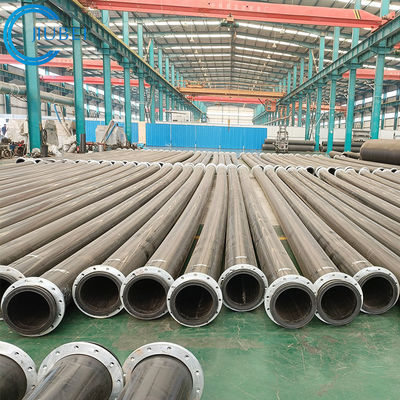

Detail images:
