Product Details:
|
Name: | UHMWPE Pipe | Material: | UHMWPE |
---|---|---|---|
Color: | As Request | Dimension: | DN90~1200mm |
Installation: | Steel Flange | Warranty: | 12months |
Thickness: | 4~50mm | Alloy Or Not: | Yes |
Outer Diameter(round): | 90-1200mm | Application: | Mine Tailing Discharging |
Highlight: | dredge pipeline,pipeline dredger,dredging pipeline steel |

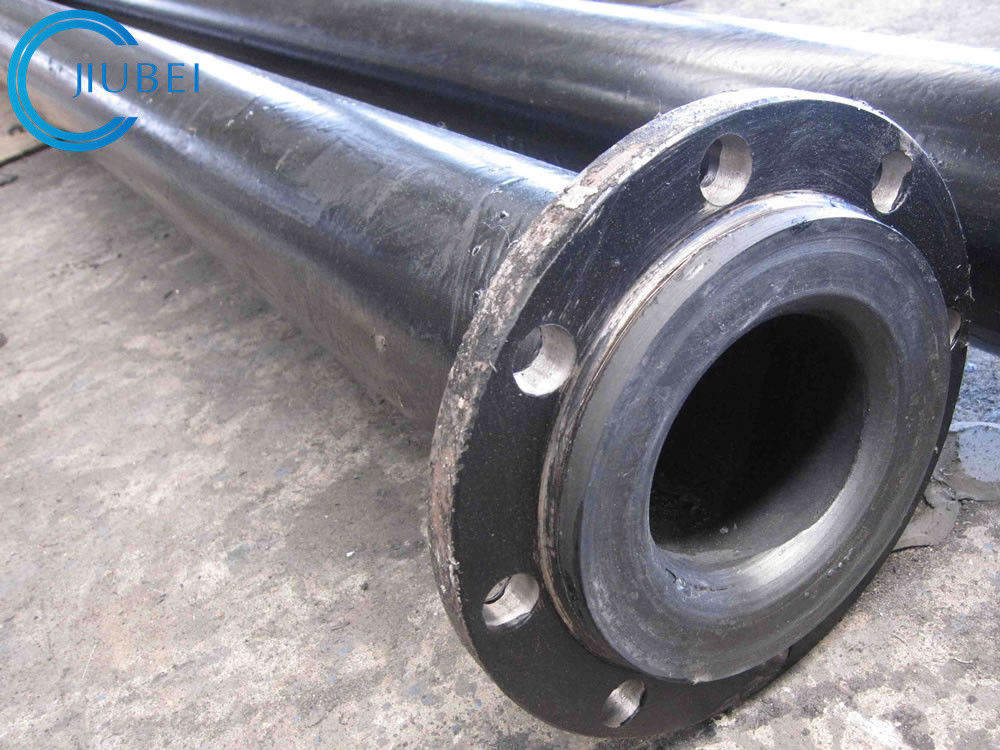

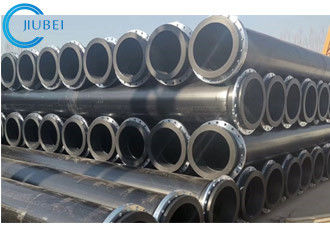

Marine and Dredging Industry Slurry Dredge UHMWPE Pipes
(UHMWPE) is a new type of thermoplastic engineering plastics with a molecular weight of more than 3 million viscosity.
ultra high molecular weight polyethylene pipe has excellent properties such as very high wear resistance, impact resistance, excellent internal pressure resistance, resistance to environmental stress cracking, inherently safe, non-stick, self-lubricating, low temperature resistance properties and excellent chemical resistance. resistance and so on. And it is widely used in metallurgical mining, power, petroleum, natural gas, textile, papermaking, food, chemical, machinery,
electricity and other industries.
UHMWPE differs from standard PE types in that it has a very high degree of polymerisation. UHMW is stiffer than LDPE and HDPE and has better abrasion resistance than PTFE.
Specaifications:
O.D. DN(mm) |
0.4MPa | 0.6MPa | 0.8MPa | 1MPa | 1.25MPa | 1.65MPa | 2.0MPa | |
Thickness mm |
Thickness mm |
Thickness mm |
Thickness mm |
Thickness mm |
Thickness mm |
Thickness mm |
||
110 | 4.7 | 6.0 | 7.4 | 9.2 | 11.4 | |||
125 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | |||
140 | 6.0 | 7.7 | 9.5 | 11.8 | 14.6 | |||
160 | 5.2 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | ||
180 | 5.9 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | ||
219 | 6.5 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | ||
225 | 4.9 | 7.3 | 9.7 | 11.9 | 14.8 | 18.4 | 22.7 | |
250 | 5.5 | 8.1 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | |
280 | 6.2 | 9.1 | 12.0 | 15.0 | 18.7 | 23.2 | 28.6 | |
315 | 6.9 | 10.2 | 13.5 | 16.9 | 21.1 | 26.1 | 32.2 | |
350 | 7.8 | 11.5 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | |
400 | 8.8 | 13.0 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | |
450 | 9.8 | 14.6 | 19.1 | 13.9 | 29.7 | 36.8 | ||
500 | 11.0 | 16.2 | 21.4 | 26.7 | 33.2 | 41.2 | ||
560 | 12.3 | 18.2 | 24.1 | 30.0 | 37.4 | |||
630 | 13.8 | 20.5 | 27.2 | 33.9 | 42.1 | |||
700 | 15.3 | 22.7 | 30.6 | 38.1 | ||||
800 | 18.0 | 26.0 | 38.1 | |||||
900 | 20.0 | 30.0 | 42.1 | |||||
1000 | 22.0 | 33.0 |
