Composite UHMWPE Pipe Standard Dn300 Wear Pr Lined Steel Mine Tailing
  • name
  • name
  • name
  • name

Composite UHMWPE Pipe Standard Dn300 Wear Pr Lined Steel Mine Tailing

MOQ: 100m
Price: usd50-500/m
Standard Packaging: Standard sea worthy packaging
Delivery Period: 7working days
Payment Method: L/C, T/T
Supply Capacity: 3000m/month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JiuBei
Certification
ISO
Name:
UHMWPE Lined Steel Pipe
Material:
Carbon Steel And UHMWPE
Color:
As Request
Dimension:
DN90~1200mm
Installation:
Steel Flange
Warranty:
12months
Thickness:
4~50mm
Alloy Or Not:
Yes
Outer Diameter(round):
90-1200mm
Application:
Mine Tailing Discharging
Highlight:

Uhmwpe Composite Pipe

,

UHMWPE Pipe Dn300

,

uhmwpe pipe standard

Product Description

Dn300 Wear pro UHMWPE lined steel pipe for mine tailing



UHMWPE lined steel pipe:

UHMWPE is a kind of new engineering thermoplastic with more than 3 million viscosity molecular weight. Ultra-high molecular weight polyethylene pipe has superior performance over conventional HDPE pipe such as very high wear resistance, impact resistance, excellent resistance to internal pressure strength, resistance to environmental stress cracking, intrinsically safe self-lubricating, anti-adhesion, low temperature resistance and excellent chemical resistance.

UHMWPE Plastic and Steel Composite Pipe is scientifically composed of ultra high molecular weight polyethylene(UHMWPE) pipe and carbon steel pipe. It adopts flanged carbon steel tube as its outer tube and UHMWPE tube as its inner tube.

The specification ranges from ID200mm to 1200mm.

Features of UHMWPE lined steel pipe:

Taking merits from both UHMWPE pipe and steel pipe, high wear-resistant Steel-Plastic composite pipe has characteristics of high wear-resistance, high-pressure resistance.

It is widely used in water supply and drainage, dredge and reclamation, transfer of sand and slurry, coal ash in thermal power plant, mining tailing and water coal slurry with high pressure etc.



Connection:

It is connected by flanges and fixed by bolts and nuts to be used as piping. It has advantages of quick to connect, easy to disassemble, high strengh, good tightness, etc.



Dimension of Wear pro UHMWPE lined steel pipe for mine tailing

I.D mm UHMWPE Thk. mm Steel pipe thk.mm Working pressure MPa
200 10.0 6.0 6.0
250 10.0 6.0 5.0
300 10.0 6.0 5.0
350 15.0 6.0 4.0
400 15.0 8.0 4.0
450 15.0 8.0 3.5
500 15.0 8.0 3.0
550 15.0 8.0 3.0
600 15.0 10.0 3.0
650 20.0 10.0 3.0
700 20.0 10.0 3.0
750 20.0 10.0 2.5
800 20.0 10.0 2.5
850 20.0 12.0 3.0
900 20.0 12.0 2.5
1000 25.0 12.0 2.5
1200 25.0 12.0 2.0

Detail images:

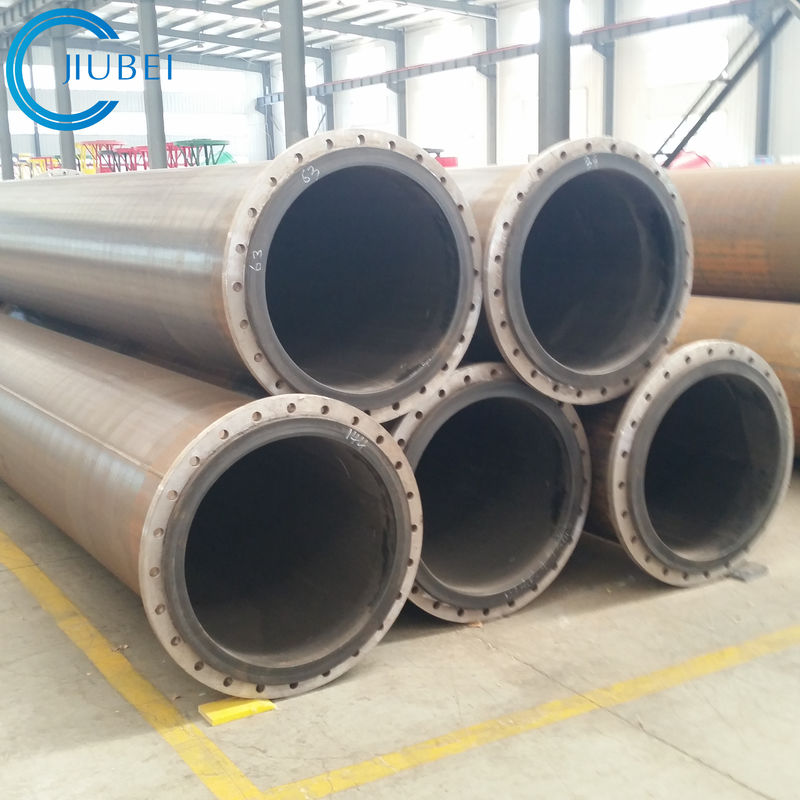

Composite UHMWPE Pipe Standard Dn300 Wear Pr Lined Steel Mine Tailing 0

Composite UHMWPE Pipe Standard Dn300 Wear Pr Lined Steel Mine Tailing 1
