Product Details:
|
| Material: | NBR, With HB40 Ring Reinforced | Name: | Armored Rubber Hose |
|---|---|---|---|
| Length: | Customer Made | Connection: | Flange |
| Application: | Sand/coral/ Rock Dredging | Working Pressure: | 1~2.5Mpa |
| High Light: | wire armoured hose,rubber armoured hose,flexible armoured hose |
||

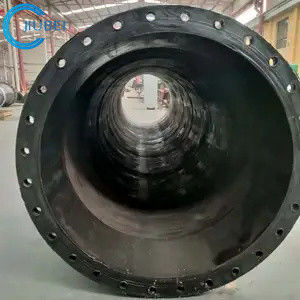

Armored flexible rubber Strong tube for mud suction and discharge
Construction:
Inner layer: Abrasive resistant synthetic rubber with high strength breaker plies and coated with a high
grade synthetic rubber interior surface.
Reinforcement: High tensile strength fabrics cord.
Cover: Synthetic rubber, resistant to abrasion, weathering, sea water and oil exposure. The cover, which incorporates reinforcing breaker plies is black with a bright orange spiral stripe or coated in tough bright
orange polyurethane.
Rubber hose features:
1. This kind of hose is high pressure resistance and abrasive resistance , and it is with the feature of
flexiable and bent,which is popular in dredging work mining.
2. All kinds of sand suction hose are made in suitable materials due to different purpose.
3. Abrasion resistant, weather resistant,and zone resistant.
4. Some customers said the life can be 3 years.
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||
Detail images:
Inspection of heavy duty armored rubber hose:
