High Pressure Armoured Hose Submarine Discharging Sandwich Flange Rubber

High Pressure Armoured Hose Submarine Discharging Sandwich Flange Rubber

MOQ: 1unit
Price: usd50-500/unit
Standard Packaging: Standard sea worthy packaging
Delivery Period: 7working days
Payment Method: L/C, T/T
Supply Capacity: 300units/month
Detail Information
Place of Origin
China
Brand Name
JiuBei
Certification
ISO
Material:
NBR, With HB40 Ring Reinforced
Name:
Armored Rubber Hose
Length:
Customer Made
Connection:
Flange
Application:
Sand/coral/ Rock Dredging
Working Pressure:
1~2.5Mpa
Highlight:

High Pressure Armoured Hose

,

Armoured Hose Discharging

,

Submarine Armored Hose

Product Description

Discharging Sandwich Flange Rubber Hose



The armored pipe is used in dredging and pipeline connection projects. It is applicable to transport objects which have sharp interface, larger volume and large specific gravity, such as: B. Coral reefs, coarse sand and weathered rock. At present, the reef transportation with our armored pipe used in overseas dredging projects has already exceeded 40,000,000 square meters, and until now the pipe is still practical in the project.



Purpose: It is mainly used for dredging and transportation pipelines in the sea and rivers.



Dimension:

Size (inch) I.D(mm) W.P.(bar) Length(m)
8 200 15~25 11.8
10 250 15~25 11.8
12 300 15~25 11.8
16 400 15~25 11.8
20 500 15~25 11.8
24 600 15~25 11.8
26 650 15~25 11.8
30 750 15~25 11.8
32 800 15~25 11.8
34 850 15~25 11.8
Other dimensions can be customized as requirements.

Detail images:

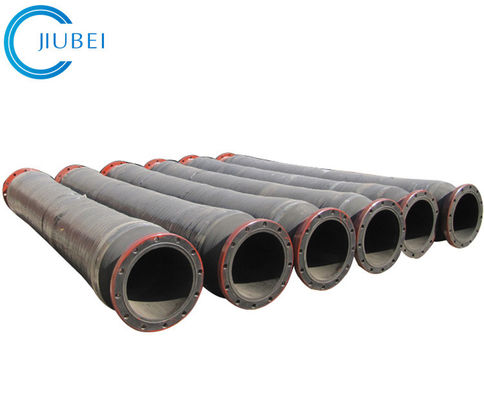

High Pressure Armoured Hose Submarine Discharging Sandwich Flange Rubber 0High Pressure Armoured Hose Submarine Discharging Sandwich Flange Rubber 1



Inspection of heavy duty armored rubber hose:

High Pressure Armoured Hose Submarine Discharging Sandwich Flange Rubber 2
