Product Details:
|
| Material: | NBR, With HB40 Ring Reinforced | Name: | Armored Rubber Hose |
|---|---|---|---|
| Length: | Customer Made | Connection: | Flange |
| Application: | Sand/coral/ Rock Dredging | Working Pressure: | 1~2.5Mpa |
| High Light: | Rubber Armoured Hose,Armoured Hose Delivery,Armoured Suction & Delivery Hose |
||

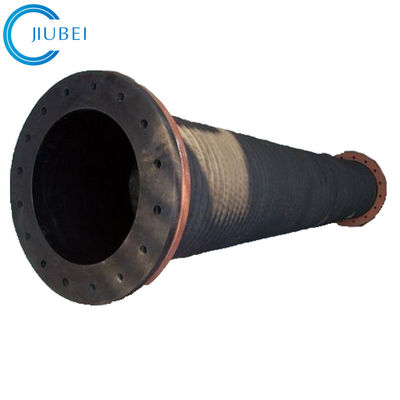

Customized Rubber Dredge Armored Floating Hose For Dredging Project
Due to different transportation of excavators, we usually have different wear resistance requirements of pipes.
To meet the needs of different dredging projects, our dredging pipes can be lined with steel or ceramic rings to improve the wear resistance of rubber hoses. The
armored conveyor tubes have rings in the internal structure, which makes them have better wear resistance. They are generally used to dredge larger volume sharp-edged materials and certain heavy materials such as coarse sand, coral reefs or weathered rocks.
ceramic whistles have ceramic elements in the internal structure, which makes the whistles have good wear resistance.They are suitable for the toughest marine or mining conditions. Compared to armored conveyor pipes, they have better wear resistance, but they are also more expensive.
Conventional Dredge Pipes are the most common rubber waste pipe used on a dredging project. Suitable materials for conveying drainpipes are generally mud, clay, fine sand, fine sand, etc.
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||

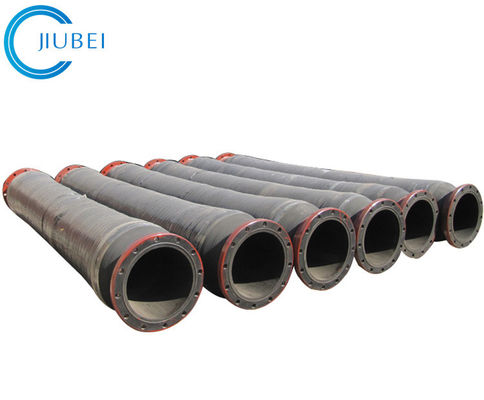

Detail images:
Inspection of heavy duty armored rubber hose:
