Product Details:
|
Material: | NBR, With HB40 Ring Reinforced | Name: | Armored Rubber Hose |
---|---|---|---|
Length: | Customer Made | Connection: | Flange |
Application: | Sand/coral/ Rock Dredging | Working Pressure: | 1~2.5Mpa |
Highlight: | 6 Inch Wire Armoured Hose,Armoured Hose Suction,Armored Hose Manufacturers |

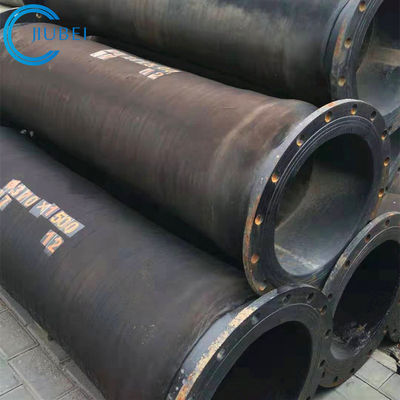

Suction Hose And Discharge Rubber Hosewith Flange For Sand Extraction
Specifications
1) -30~121 Celsius
2) Inner diameter: 2''~4#039;
3) Pressure: 5,000psi ~ 20,000psi
4) Only for API 16C in China
(1) Applicability
Widely used in drilling, cementing and maintenance work as a flexible restrictor and nozzle combination for pumping mud or oil-based fluids Oil-based mud , high pressure washing fluid in bulk and a hydraulic control line for BOP controls.
(2) Operating Temperature
-30°C~+121°C
(3) Flexible
Primarily a rubber compound containing nitrile butadiene rubber, resistant to oil, abrasion, acid and corrosion.
(4) Reinforcement
2~8 layers spiral braided with high tenacity steel wire.
(5) Cover
Equipped with neoprene rubber, resistant to oil, low temperatures, atmospheric agents and aging.
(6) Outer Cover Stainless Steel Anchor
(7) Fittings
Forged fittings feature API threads and can be mated with hubs, flanges or collars, integral fittings and flanged fittings.This may also be required by Customer
(8) Standard
API Spec 16C (Authentication Only).
Dimension:
Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
8 | 200 | 15~25 | 11.8 |
10 | 250 | 15~25 | 11.8 |
12 | 300 | 15~25 | 11.8 |
16 | 400 | 15~25 | 11.8 |
20 | 500 | 15~25 | 11.8 |
24 | 600 | 15~25 | 11.8 |
26 | 650 | 15~25 | 11.8 |
30 | 750 | 15~25 | 11.8 |
32 | 800 | 15~25 | 11.8 |
34 | 850 | 15~25 | 11.8 |
Other dimensions can be customized as requirements. |
Detail images:
Inspection of heavy duty armored rubber hose:
