Product Details:
|
| Material: | NBR, With HB40 Ring Reinforced | Name: | Armored Rubber Hose |
|---|---|---|---|
| Length: | Customer Made | Connection: | Flange |
| Application: | Sand/coral/ Rock Dredging | Working Pressure: | 1~2.5Mpa |
| Highlight: | 8 suction hose,wire armoured suction hose,90mm suction hose |
||
Rubber Wire Armoured Suction Pipe
Construction:
Lining: Abrasion resistant synthetic rubber with high strength breaker layers and premium
synthetic rubber inner surface.
Reinforcement: High tenacity woven rope.
Cover: Synthetic rubber resistant to abrasion, atmospheric agents, seawater and oils. The jacket with reinforcing separator layers is black with bright orange spiral stripe or coated with bright orange rigid polyurethane.
rubber hose Technical data:
1.This type of tubing is resistant to high pressure and abrasion, and the
feature is flexible and curved, which is popular in mining dredging.
2. All kinds of sand suction pipe are made of materials suitable for different purposes.
3. Abrasion, weather and scratch resistant.
4. Some customers said the duration could be 3 years.
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||

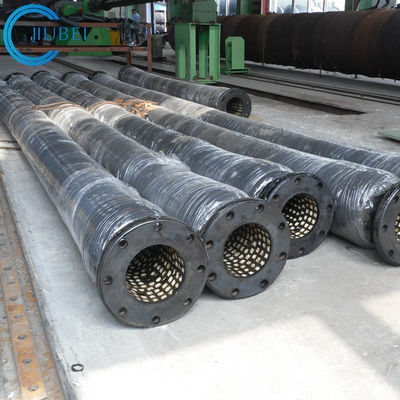

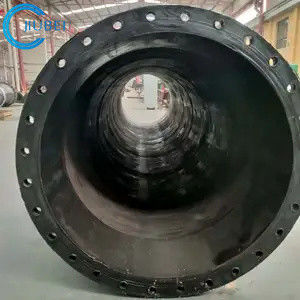

Detail images:
Inspection of heavy duty armored rubber hose:
