PRODUCTS DETAILS

Home > Products >

Ultra High Molecular Weight Polyethylene Uhmwpe Pipe Manufacturers

Products

Ultra High Molecular Weight Polyethylene Uhmwpe Pipe Manufacturers

MOQ:	100m
Price:	usd50-500/m
Standard Packaging:	Standard sea worthy packaging
Delivery Period:	7working days
Payment Method:	L/C, T/T
Supply Capacity:	3000m/month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

JiuBei

Certification

ISO

Name:

UHMWPE Lined Steel Pipe

Material:

Carbon Steel And UHMWPE

Color:

As Request

Dimension:

DN90~1200mm

Installation:

Steel Flange

Warranty:

12months

Thickness:

4~50mm

Alloy Or Not:

Yes

Outer Diameter(round):

90-1200mm

Application:

Mine Tailing Discharging

Highlight:

Ultra High Molecular Weight Polyethylene Pipe

Uhmwpe Pipe Manufacturer

uhmwpe tubes

Product Description

Ultra High Molecular Weight Polyethylene UHMWPE Floating Water Mud Slurry Sand Gas Oil Dredging Dredge Dredger Mining Pi

UHMWPE usually refers to the linear polyethylene with a viscosity average molecular weight more than 2 million daltons. HDPE usually refers to the general purpose plastics-linear polyethylene with a viscosity average molecular weight of 20,000 to 300,000 with a 10 times higher Molecular weight than HDPE, the UHMWPE materials have better performances with excellent wear resistance and lower temperature resistance. Corrosion resistance, self-lubrication, anti-impact. The wear resistance is the beast among plastics, and it can work under-110to 70 for a long time.

Usage: it is widely used in dredging, water supply, metallurgical mines, electric power, petroleum, natural gas, textiles, paper making, food, chemical industry, machinery, etc.

Applications:
1. Dredging Industry: Floating dredge pipe for river channel/sea shore/lake/pond, sand suction/slurry dredge
2. Mining industry: mine powder, mine slurry, mine tailings, mine waste rock delivery
3. Water Drainage: Sewage pipe
4. Sea engineering: Sea water desalinization, bunder dredging
5. Chemical industry: mud and corrosive medium with slag delivery
6. Gas & Oil Industry: Crud oil,petroleum and natural gas transport.

O.D. DN(mm)	0.4MPa	0.6MPa	0.8MPa	1MPa	1.25MPa	1.65MPa	2.0MPa
	Thickness mm	Thickness mm	Thickness mm	Thickness mm	Thickness mm	Thickness mm	Thickness mm
	Thickness mm	Thickness mm	Thickness mm	Thickness mm	Thickness mm	Thickness mm	Thickness mm
110			4.7	6.0	7.4	9.2	11.4
125			5.4	6.7	8.3	10.3	12.7
140			6.0	7.7	9.5	11.8	14.6
160		5.2	6.9	8.6	10.7	13.3	16.4
180		5.9	7.7	9.6	11.9	14.7	18.2
219		6.5	8.6	10.8	13.4	16.6	20.5
225	4.9	7.3	9.7	11.9	14.8	18.4	22.7
250	5.5	8.1	10.7	13.4	16.6	20.6	25.4
280	6.2	9.1	12.0	15.0	18.7	23.2	28.6
315	6.9	10.2	13.5	16.9	21.1	26.1	32.2
350	7.8	11.5	15.3	19.1	23.7	29.4	36.3
400	8.8	13.0	17.2	21.5	26.7	33.1	40.9
450	9.8	14.6	19.1	13.9	29.7	36.8
500	11.0	16.2	21.4	26.7	33.2	41.2
560	12.3	18.2	24.1	30.0	37.4
630	13.8	20.5	27.2	33.9	42.1
700	15.3	22.7	30.6	38.1
800	18.0	26.0	38.1
900	20.0	30.0	42.1
1000	22.0	33.0

Detail images:

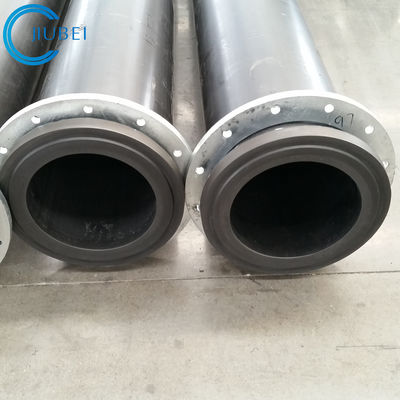

Ultra High Molecular Weight Polyethylene Uhmwpe Pipe Manufacturers 0
