Anti Corrosion Uhmwpe Lined Tubing Mine Tailing Discharging

Anti Corrosion Uhmwpe Lined Tubing Mine Tailing Discharging
Anti Corrosion Uhmwpe Lined Tubing Mine Tailing Discharging

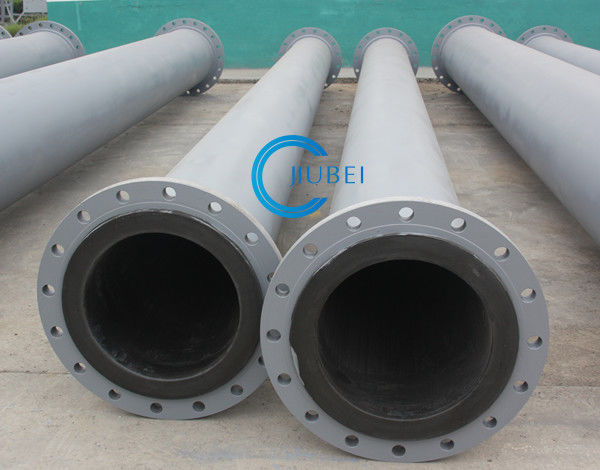

Large Image :  Anti Corrosion Uhmwpe Lined Tubing Mine Tailing Discharging

Product Details:
Place of Origin: China
Brand Name: JiuBei
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 100m
Price: usd50-500/m
Packaging Details: Standard sea worthy packaging
Delivery Time: 7working days
Payment Terms: L/C, T/T
Supply Ability: 3000m/month

Anti Corrosion Uhmwpe Lined Tubing Mine Tailing Discharging

Description
Name: UHMWPE Lined Steel Pipe Material: Carbon Steel And UHMWPE
Color: As Request Dimension: DN90~1200mm
Installation: Steel Flange Warranty: 12months
Thickness: 4~50mm Alloy Or Not: Yes
Outer Diameter(round): 90-1200mm Application: Mine Tailing Discharging
High Light:

Anti corrosion uhmwpe lined tubing

,

uhmwpe lined tubing mine

,

uhmwpe tubing

Anti corrosion UHMWPE pipe lined steel pipe for mine tailing discharging


 UHMWPE has the following impressive values: up to 15 times more abrasion resistance than steel, while being 8 times lighter than steel and 5 times lower coefficient of friction than steel, while offering only 1/10 the stress loss of steel pipe. UHMWPE pipe is ideal for conveyance of pulverized coal and ash in power plants, power lines, transportation of overburden and sludge in mines, high-pressure conveyance of pulverized coal and coal slurry water
in coal processing plants in the coal industry, and transportation of sludge and corrosive liquids containing slag in other industries.
UHMWPE material weighs 1/8th the weight of mild steel but has high tensile strength. Unlike steel, UHMWPE is an economical alternative to metals and ceramics because it is self-lubricating, durable, and resistant to abrasion and corrosion. UHMWPE is suitable for piping applications that require high abrasion resistance combined with low friction.Ultra high molecular weight PE
has been a proven material in the paper, transport, machinery and fishing industries for many years.

Specaifications:

O.D.
DN(mm)

0.4MPa0.6MPa0.8MPa1MPa1.25MPa1.65MPa2.0MPa

Thickness
mm

Thickness
mm

Thickness
mm

Thickness
mm

Thickness
mm

Thickness
mm

Thickness
mm



110  4.76.07.49.211.4
125  5.46.78.310.312.7
140  6.07.79.511.814.6
160 5.26.98.610.713.316.4
180 5.97.79.611.914.718.2
219 6.58.610.813.416.620.5
2254.97.39.711.914.818.422.7
2505.58.110.713.416.620.625.4
2806.29.112.015.018.723.228.6
3156.910.213.516.921.126.132.2
3507.811.515.319.123.729.436.3
4008.813.017.221.526.733.140.9
4509.814.619.113.929.736.8
50011.016.221.426.733.241.2
56012.318.224.130.037.4
63013.820.527.233.942.1
70015.322.730.638.1
80018.026.038.1
90020.030.042.1
100022.033.0

Technical parameters:
Anti Corrosion Uhmwpe Lined Tubing Mine Tailing Discharging 0
Detail images:
Anti Corrosion Uhmwpe Lined Tubing Mine Tailing Discharging 1
