Product Details:
|
| Material: | NBR, With HB40 Ring Reinforced | Name: | Armored Rubber Hose |
|---|---|---|---|
| Length: | Customer Made | Connection: | Flange |
| Application: | Sand/coral/ Rock Dredging | Working Pressure: | 1~2.5Mpa |
| Highlight: | mining Armoured Hose 32 Inch,Armoured Hose For Dredger 32 Inch,Armoured Dredger pipe 32 Inch |
||

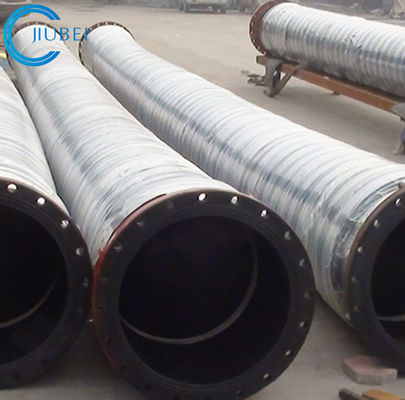

Heavy Duty Slurry Discharge Flexible Rubber Hose Flexible Abrasion Resistant Dredging Hose
Features
1. The outer shell is made of a rubber compound that is highly resistant to weather, UV rays and ozone.
2. Wear indicator layers can be used on dredge tubing carrying abrasive materials.
3A single layer of buoyant foam prevents water absorption. The height of the pipe above the water is not less than 20% of its total volume.
4. Inner layer: High quality rubber with excellent abrasion resistance.
5Custom flanges available.
6. Bending angle: When ready for operation, the bending angle is between 0° and 45°.
7. Operating temperature range: -25ºC to 80ºC
8.Safety Factor: 4:1.
We can supply a wide range of buoyant and submersible (non-buoyant) rubber hoses. Inside diameter (ID) options include 35" (900mm), 20" (500mm), 16" (400mm), 12" (300mm), 10" (250mm), 8" (200mm) up to 6 (150 mm) Other diameters and special requests can also be supplied on request and subject to availability.
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||
Detail images:
Inspection of heavy duty armored rubber hose:
