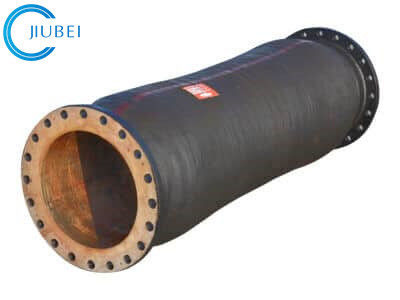

Product Details:
|
| Material: | NBR, With HB40 Ring Reinforced | Name: | Armored Rubber Hose |
|---|---|---|---|
| Length: | Customer Made | Connection: | Flange |
| Application: | Sand/coral/ Rock Dredging | Working Pressure: | 1~2.5Mpa |
| High Light: | rubber spring hose,Armoured Water Hose 24 Inch,Armoured Water Hose 26 Inch |
||
Chinese manufacturer spring hose guard protect the rubber hose external armored hose
Description
Drill Pipe / Swivel Hose / Kelly Hose, compliant with API 7K, is intended for hose connections between upstream oil wells, well cementing, well operations and maintenance operations. The drill pipe is also used to avoid installation errors between the drill pipe and the riser. For pumping water or oil based slurries under high pressure.
Construction:
Inner protective rubber layer
Rubber intermediate layer
Spiral steel wire layer
Outer rubber coating
Integrated API plugs, nipples and integrated nipples, single terminals, grounding flanges. About
drill pipe:
high-pressure rubber mud pipes, vibrating pipes and drill pipes are made of 4 layers.The frame is made of high-strength steel cable. The inner sealing layers are made of synthetic rubber that reflects weather, oil and heat.
The outer protective layer material for rubber mud, vibrator and drill pipe is also made of synthetic rubber, which effectively resists aging, oil and abrasion.
Depending on customer requirements, an additional fire protection layer can also be attached.
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||
Detail images:
Inspection of heavy duty armored rubber hose:
