Product Details:
|
Name: | Factory Price Wear Resistant HDPE Dredging Sand Slurry Pipe Floats | Material: | PE &PU Foam |
---|---|---|---|
Dia: | DN60`1200mm | Color: | Orange /Yellow |
Warranty: | 12 Months | MOQ: | 10 Pairs |
Highlight: | Polyethylene Dredging Pipe Floats,pipe floats,Dredging Pipe Floats 160Mm 6 Inch |

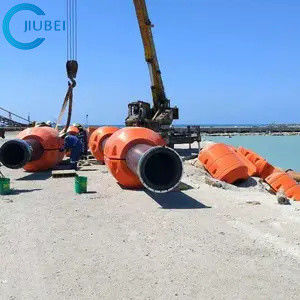

Factory price wear resistant HDPE dredging sand slurry pipe
Dredging Pipe Floats are either formed of steel pipes supported at regular intervals by buoyancy units or surrounded by a buoyant case, or they are composed of pipes made of a buoyant material.
In all these cases the pipeline must be built to be flexible enough to endure the movement of the sea and currents. The pipe itself may be made flexible by inserting ball joints in the line at regular intervals or by adding lengths of the flexible pressure hose. All floating pipelines are made in a modular fashion and are connected together by bolts or quick coupling devices.
PE Float Dimension:
Float I.D. (mm) |
Float O.D.(mm) | Float Length(mm) |
Thickness of Hull(mm) |
Floater Buoyancy (kg) |
110 | 500 | 500 | 7 | 98 |
125 | 500 | 800 | 7 | 150 |
160 | 500 | 800 | 7 | 145 |
220 | 600 | 700 | 7 | 180 |
250 | 600 | 700 | 7 | 175 |
280 | 700 | 900 | 7 | 340 |
310 | 900 | 1000 | 8 | 550 |
320 | 1000 | 1000 | 9 | 650 |
350 | 950 | 1000 | 9 | 600 |
390 | 1000 | 1000 | 9 | 600 |
400 | 1100 | 1100 | 9 | 900 |
450 | 1200 | 1200 | 11 | 1100 |
460 | 1300 | 1300 | 12 | 1400 |
495 | 1300 | 1300 | 12 | 1400 |
520 | 1300 | 1450 | 12 | 1500 |
550 | 1300 | 1500 | 12 | 1750 |
560 | 1400 | 1500 | 12 | 1900 |
600 | 1400 | 1600 | 13 | 2100 |
620 | 1450 | 1700 | 13 | 2400 |
670 | 1500 | 1860 | 14 | 2800 |
720 | 1500 | 1860 | 14 | 2800 |
735 | 1500 | 1800 | 14 | 2700 |
760 | 1800 | 2050 | 15 | 3100 |
800 | 1800 | 2160 | 15 | 3300 |
890 | 2000 | 2400 | 15 | 4600 |
940 | 2040 | 2500 | 16 | 4900 |
1040 | 2400 | 2600 | 16 | 7000 |
1140 | 2300 | 2550 | 16 | 7000 |
