Product Details:
|
| Name: | Customizable Floating Hose Assembled Polyethylene Floats For Dredging Pipeline | Diameter: | DN50~DN1200 |
|---|---|---|---|
| Out Shell Thickness: | 6~16mm | Color: | Yellow/orange |
| High Light: | polyethylene floats for sale,polyethylene foam float,hdpe floating pontoon |
||

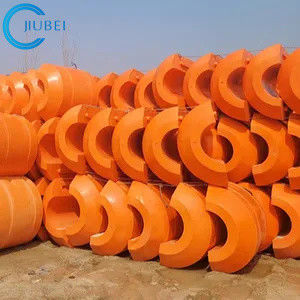

Customizable floating hose assembled buoy dredging pipeline
Dredging Pipe Floats is capable of supporting substantial loads.So that it has a wide application areas: coastal harbor, inland river, rocks, beach, islet, reef and bank etc.
We are professional to do Dredging Pipe Floats. And we are dedicated to build long term cooperation relationship with our clients.We have competitive price with excellent quality, and good faith management.
We use imported food PE raw materials, light weight and have big buoyancy. Because of it's higher corrosive resistance, anti-aging , it's safe and durable.
Good quality:
It's anti-UV , good flexibility,and excellent impact resistance, no crack.Also it's environmentally friendly.
Customized:
Size, color or logo can be customized according to customer requirement.
Reasonable price:
You can save much more expenses and time on preservation, replacement and repair. Low mould costs. And the working life is three times of steel pontoon life.
PE Float Dimension:
| Float I.D. (mm) |
Float O.D.(mm) | Float Length(mm) |
Thickness of Hull(mm) |
Floater Buoyancy (kg) |
| 110 | 500 | 500 | 7 | 98 |
| 125 | 500 | 800 | 7 | 150 |
| 160 | 500 | 800 | 7 | 145 |
| 220 | 600 | 700 | 7 | 180 |
| 250 | 600 | 700 | 7 | 175 |
| 280 | 700 | 900 | 7 | 340 |
| 310 | 900 | 1000 | 8 | 550 |
| 320 | 1000 | 1000 | 9 | 650 |
| 350 | 950 | 1000 | 9 | 600 |
| 390 | 1000 | 1000 | 9 | 600 |
| 400 | 1100 | 1100 | 9 | 900 |
| 450 | 1200 | 1200 | 11 | 1100 |
| 460 | 1300 | 1300 | 12 | 1400 |
| 495 | 1300 | 1300 | 12 | 1400 |
| 520 | 1300 | 1450 | 12 | 1500 |
| 550 | 1300 | 1500 | 12 | 1750 |
| 560 | 1400 | 1500 | 12 | 1900 |
| 600 | 1400 | 1600 | 13 | 2100 |
| 620 | 1450 | 1700 | 13 | 2400 |
| 670 | 1500 | 1860 | 14 | 2800 |
| 720 | 1500 | 1860 | 14 | 2800 |
| 735 | 1500 | 1800 | 14 | 2700 |
| 760 | 1800 | 2050 | 15 | 3100 |
| 800 | 1800 | 2160 | 15 | 3300 |
| 890 | 2000 | 2400 | 15 | 4600 |
| 940 | 2040 | 2500 | 16 | 4900 |
| 1040 | 2400 | 2600 | 16 | 7000 |
| 1140 | 2300 | 2550 | 16 | 7000 |
| Item | Out shell data | Item | Inner Foam |
| Tensile Strength | ≥13.1MPa | Absorption | 1-2g/100cm2 |
| Elongation at break | ≥11.1% | Breaking Strength | 0.08-0.1MPa |
| Impact strength | ≥32.1KJ/m2 | Elongation at break | 4-6% |
| Bending Strength | ≥15.7MPa | Compressive strength | 0.1-0.24MPa |
