Polyethylene Pontoon Floats Wear Resistant HDPE Pipe Dredging Tubes Buoy Marine

Polyethylene Pontoon Floats Wear Resistant HDPE Pipe Dredging Tubes Buoy Marine
Polyethylene Pontoon Floats Wear Resistant HDPE Pipe Dredging Tubes Buoy Marine Polyethylene Pontoon Floats Wear Resistant HDPE Pipe Dredging Tubes Buoy Marine Polyethylene Pontoon Floats Wear Resistant HDPE Pipe Dredging Tubes Buoy Marine

Large Image :  Polyethylene Pontoon Floats Wear Resistant HDPE Pipe Dredging Tubes Buoy Marine

Product Details:
Place of Origin: China
Brand Name: JiuBei
Certification: ISO
Model Number: DN400 PE pipe float
Payment & Shipping Terms:
Minimum Order Quantity: 10 pairs
Price: USD50~500/pair
Packaging Details: STANDARD SEA WORTHY PACKAGE
Delivery Time: 10days
Supply Ability: 300pairs/month

Polyethylene Pontoon Floats Wear Resistant HDPE Pipe Dredging Tubes Buoy Marine

Description
Name: Wear Resistant HDPE Floating Dredging Plastic Tubes Price Buoy Marine For Dredging Raw Material: PE And PU
Application: Dredging And Cable Floating Color: As Request
Shape: Clinder Warranty: 12 Months
High Light:

polyethylene pontoon floats

,

hdpe pipe pontoon

,

polyethylene pontoons

Wear Resistant HDPE Floating Dredging Plastic Tubes Price Buoy Marine For Dredging

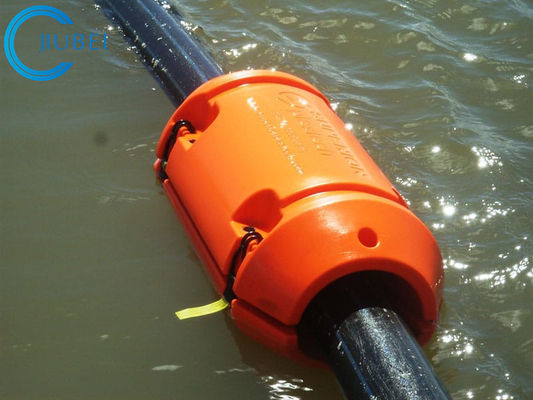

Dredging Pipe Floats are widely used for supporting discharge hoses. They are made from high wear resistant LMDPE by rotational molding technology. Dredge floats are also manufactured in a way that will allow them to absorb the energy from vessel collision, to protect the pipelines that they are supporting. Double reinforced hardware on every float ensures a safe and secure connection to the pipe.
A pipe float set comprises of 2 pipe float halves and a galvanised assembly kit, Stainless Steel kits are available, manufactured from Recyclable and VOC free polyethylene.


1. Made in two sections that can be bolted together around the hose or the pipe;
2. Floats have the options of polyurethane foam filling;
3. Capacity is based on fully submerged float;
4. Standard Color--Orange, other color options are available;
5. Galvanized steel bolts,nuts and washers are included;
6. High impact and UV resistant polyethylene construction.



PE Float Dimension:

Float I.D.
(mm)
Float O.D.(mm) Float
Length(mm)
Thickness
of Hull(mm)
Floater
Buoyancy (kg)
110 500 500 7 98
125 500 800 7 150
160 500 800 7 145
220 600 700 7 180
250 600 700 7 175
280 700 900 7 340
310 900 1000 8 550
320 1000 1000 9 650
350 950 1000 9 600
390 1000 1000 9 600
400 1100 1100 9 900
450 1200 1200 11 1100
460 1300 1300 12 1400
495 1300 1300 12 1400
520 1300 1450 12 1500
550 1300 1500 12 1750
560 1400 1500 12 1900
600 1400 1600 13 2100
620 1450 1700 13 2400
670 1500 1860 14 2800
720 1500 1860 14 2800
735 1500 1800 14 2700
760 1800 2050 15 3100
800 1800 2160 15 3300
890 2000 2400 15 4600
940 2040 2500 16 4900
1040 2400 2600 16 7000
1140 2300 2550 16 7000
(Support customization)

Polyethylene Pontoon Floats Wear Resistant HDPE Pipe Dredging Tubes Buoy Marine 0Polyethylene Pontoon Floats Wear Resistant HDPE Pipe Dredging Tubes Buoy Marine 1
