Rotational Molding Marine Dredging Pipe Float Foam Filled PE High Density Polyurethane
  • name
  • name
  • name

Rotational Molding Marine Dredging Pipe Float Foam Filled PE High Density Polyurethane

MOQ: 1unit
Price: 200~500usd/pair
Standard Packaging: Standard sea worthy packaging
Delivery Period: 7working days
Supply Capacity: 300units/month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Jiubei
Certification
ISO
Model Number
DN500
Name:
DN500 Dredging Pipe Floats For Steel Dredging Tube
Dimension:
I.D500mm O.D1300mm Length: 1300mm
Color:
Yellow Or Orange
Shell Thickness:
8mm~12mm
Foam Density:
35kg/cub
Buoyancy:
1400kg/pair
Connection:
Hot Galvanised Bolts And Nuts
Highlight:

Marine Dredging Pipe Float

,

Rotational Molding Dredging Pipe Float

,

PE pipe float

Product Description

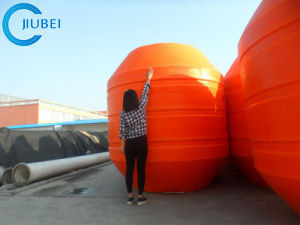

HDPE Dredging Pipe Floats with High Density Polyurethane Foam Filled


Jiubei Dredging Pipe Floats series are designed to be applied on HDPE or steel pipe while floats are designed to be applied on rubber pipes. Dredging floats are composed by two halves made in UV-stabilized linear virgin rotomoulded polyethylene. The polyethylene used in the manufacturing process is completely recyclable (environmentally friendly), it is fully compatible with the marine environment, and has high UV resistance.

Specifications of DN500 Easy installation HDPE dredging pipe floats

NO. Item Specification
1 I.D 500MM
2 O.D 1300MM
3 LENGTH 1300MM
4 OUTSHELL THICK 12MM
5 FOAM DENSTIY 35KG/CUB
6 WEIGHT 98KG/PAIR
7 BUOYANCY 1400KG/PAIR



Other dimension of dredging pipe floats:


Float I.D.
(mm)		 Float O.D.(mm) Float
Length(mm)		 Thickness
of Hull(mm)		 Floater
Buoyancy (kg)
110 500 500 7 98
125 500 800 7 150
160 500 800 7 145
220 600 700 7 180
250 600 700 7 175
280 700 900 7 340
310 900 1000 8 550
320 1000 1000 9 650
350 950 1000 9 600
390 1000 1000 9 600
400 1100 1100 9 900
450 1200 1200 11 1100
460 1300 1300 12 1400
495 1300 1300 12 1400
520 1300 1450 12 1500
550 1300 1500 12 1750
560 1400 1500 12 1900
600 1400 1600 13 2100
620 1450 1700 13 2400
670 1500 1860 14 2800
720 1500 1860 14 2800
735 1500 1800 14 2700
760 1800 2050 15 3100
800 1800 2160 15 3300
890 2000 2400 15 4600
940 2040 2500 16 4900
1040 2400 2600 16 7000
1140 2300 2550 16 7000


Rotational Molding Marine Dredging Pipe Float Foam Filled PE High Density Polyurethane 0
