Product Details:
|
| Name: | Machine Dredging Floater Hot-selling Pipe Floats For Marine Dredger At Sea | Material: | Out Shell PE, Inner Foam: PU |
|---|---|---|---|
| Production: | Rotational Molding | Warranty: | 1 Year |
| Color: | Yellow/orange | Application: | Dredging And Cable Floating |
| High Light: | Rotomoulded Dredging,Dredging Pipe Floats 14 inch,PE Pipe Floats |
||

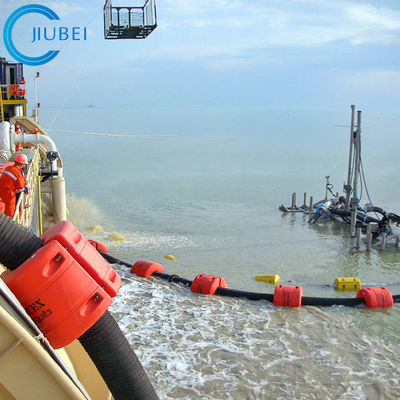

Machine Dredging Floater Hot-selling Pipe Floats For Marine Dredger At Sea
Dredging Pipe Floats is made from medium density polyethylene material with excellent flexibility, inside is filled with high strength polyurethane foam. With reasonable structure and good performance, the MDPE floater is widely used for HDPE Pipeline and Steel Pipeline.
Property of Dredging Pipe Floats:
1.Good flexibility, and excellent impact resistance, particularly suitable for the installation in the sea.
2.Light weight, easy for installation and movement, with much lower transportation costs.
3.Corrosive Resistance, longer working life, it could work 3 times longer than steel pontoons.
4.The costs and performances are much better than steel pontoons, with more competitive price.
PE Float Dimension:
| Float I.D. (mm) |
Float O.D.(mm) | Float Length(mm) |
Thickness of Hull(mm) |
Floater Buoyancy (kg) |
| 110 | 500 | 500 | 7 | 98 |
| 125 | 500 | 800 | 7 | 150 |
| 160 | 500 | 800 | 7 | 145 |
| 220 | 600 | 700 | 7 | 180 |
| 250 | 600 | 700 | 7 | 175 |
| 280 | 700 | 900 | 7 | 340 |
| 310 | 900 | 1000 | 8 | 550 |
| 320 | 1000 | 1000 | 9 | 650 |
| 350 | 950 | 1000 | 9 | 600 |
| 390 | 1000 | 1000 | 9 | 600 |
| 400 | 1100 | 1100 | 9 | 900 |
| 450 | 1200 | 1200 | 11 | 1100 |
| 460 | 1300 | 1300 | 12 | 1400 |
| 495 | 1300 | 1300 | 12 | 1400 |
| 520 | 1300 | 1450 | 12 | 1500 |
| 550 | 1300 | 1500 | 12 | 1750 |
| 560 | 1400 | 1500 | 12 | 1900 |
| 600 | 1400 | 1600 | 13 | 2100 |
| 620 | 1450 | 1700 | 13 | 2400 |
| 670 | 1500 | 1860 | 14 | 2800 |
| 720 | 1500 | 1860 | 14 | 2800 |
| 735 | 1500 | 1800 | 14 | 2700 |
| 760 | 1800 | 2050 | 15 | 3100 |
| 800 | 1800 | 2160 | 15 | 3300 |
| 890 | 2000 | 2400 | 15 | 4600 |
| 940 | 2040 | 2500 | 16 | 4900 |
| 1040 | 2400 | 2600 | 16 | 7000 |
| 1140 | 2300 | 2550 | 16 | 7000 |
