Product Details:
|
Name: | DN400 Dredging Pipe Floats For Steel Dredging Tube | Dimension: | I.D400mm O.D1100mm Length: 1100mm |
---|---|---|---|
Color: | Yellow Or Orange | Shell Thickness: | 8mm~12mm |
Foam Density: | 35kg/cub | Buoyancy: | 950kg/pair |
Highlight: | Pipe Hose Floats,Dredging Floating Pipeline,Pipe and Hose Floats for Dredge Pumping |

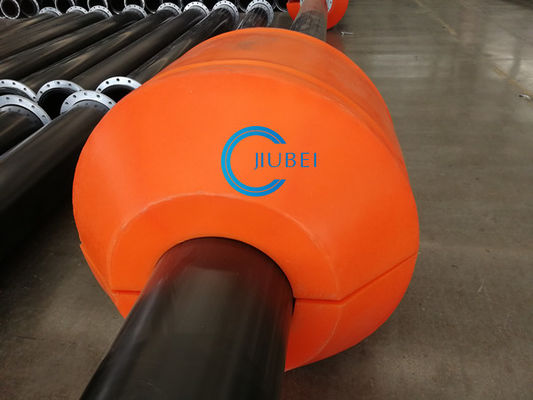

Easy installation HDPE dredging pipe floats with high density polyurethane foam filled for sea dredging project
Product Description of Dredging Pipe Floats Properties
1. Long lifespan of the PE pipe
It can be used for more than 50 years under normal condition
2. good sanitary performance
It is not added the heavy metal salt stabilizer, and its material is non-toxic, not scale. It is not easy to make dirt, and
Avoids secondary pollution of drinking water
3. Good corrosion resistance
It can resist variety of chemical mediator except few oxidizing agents
4. Good crack growth resistance
5. low coefficient of friction and low-flow resistance
6. Excellent wear resistance
Its wear resistance is 4 times higher than steel pipe under normal conditions
Specifications of DN400 Easy installation HDPE dredging pipe floats
NO. | Item | Specification |
1 | I.D | 400MM |
2 | O.D | 1100MM |
3 | LENGTH | 1100MM |
4 | OUTSHELL THICK | 11MM |
5 | FOAM DENSTIY | 35KG/CUB |
6 | WEIGHT | 60KG/PAIR |
7 | BUOYANCY | 950KG/PAIR |
Other dimension of dredging pipe floats:
Float I.D. (mm) |
Float O.D.(mm) | Float Length(mm) |
Thickness of Hull(mm) |
Floater Buoyancy (kg) |
110 | 500 | 500 | 7 | 98 |
125 | 500 | 800 | 7 | 150 |
160 | 500 | 800 | 7 | 145 |
220 | 600 | 700 | 7 | 180 |
250 | 600 | 700 | 7 | 175 |
280 | 700 | 900 | 7 | 340 |
310 | 900 | 1000 | 8 | 550 |
320 | 1000 | 1000 | 9 | 650 |
350 | 950 | 1000 | 9 | 600 |
390 | 1000 | 1000 | 9 | 600 |
400 | 1100 | 1100 | 9 | 900 |
450 | 1200 | 1200 | 11 | 1100 |
460 | 1300 | 1300 | 12 | 1400 |
495 | 1300 | 1300 | 12 | 1400 |
520 | 1300 | 1450 | 12 | 1500 |
550 | 1300 | 1500 | 12 | 1750 |
560 | 1400 | 1500 | 12 | 1900 |
600 | 1400 | 1600 | 13 | 2100 |
620 | 1450 | 1700 | 13 | 2400 |
670 | 1500 | 1860 | 14 | 2800 |
720 | 1500 | 1860 | 14 | 2800 |
735 | 1500 | 1800 | 14 | 2700 |
760 | 1800 | 2050 | 15 | 3100 |
800 | 1800 | 2160 | 15 | 3300 |
890 | 2000 | 2400 | 15 | 4600 |
940 | 2040 | 2500 | 16 | 4900 |
1040 | 2400 | 2600 | 16 | 7000 |
1140 | 2300 | 2550 | 16 | 7000 |
