Durable and Lightweight HDPE Pipe Floaters for Safe and Dredging Applications

MOQ: 1unit
Price: 10usd/pair
Standard Packaging: Standard sea worthy packaging
Delivery Period: 7working days
Supply Capacity: 300units/month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Jiubei
Certification
ISO
Model Number
DN300 PE pipe float
Features:
High Strength, Durable, Lightweight
Feature:
High Strength, Corrosion Resistance
Connection:
Hot Galvanised Bolts, Nuts And Washers
Lifetime:
Long
Application:
Dredging, Marine Engineering, Offshore Oil And Gas, Etc.
Material:
High-density Polyethylene (HDPE)
Color:
Orange, Yellow, Or Customized
Service Life:
More Than 15 Years
Surface:
Smooth
Package:
Standard
Installation:
Hot Galvanised Steel Bolts And Nuts
Float Size:
Customer Made
Structure:
Floater
Impact Resistance:
Yes
Size:
10-1100mm
Product Description



Plastic PE Mud and Sand Dredging Dredge Floater Float Floating HDPE Pipe Floating Pontoon
About pipe float

The pipe line float is one of the important components of the dredging project. The key factors for correctly selecting the
floating body model include the arrangement and layout of the floating bodies, the composition of the conveying medium, the length of the pipeline, etc., so as to calculate the accurate floating body size and wall thickness, coupled with high-quality material selection and internal foam fill to ensure dredging Safe and reliable operation of pipelines.

Material & Structure

Shell Material
Linear low density polyethylene (LDPE) resin is called the third generation polyethylene. In addition to the properties of general polyolefin resins, its tensile strength, tear strength, environmental stress crack resistance, low temperature resistance, heat resistance The performance and puncture resistance are particularly superior.
Inner Filler
The characteristics of polyurethane foam itself: light weight, heat insulation, heat preservation, waterproof, fire and corrosion resistance, abrasion resistance, oil resistance, fatigue resistance, vibration resistance and strong adhesion.
Rotational molding is to first add plastic raw materials into the mold, and then the mold is continuously rotated along two vertical axes and heated, so that the plastic raw materials in the mold are gradually uniformly coated and melted and adhered to the mold under the action of gravity and thermal energy. The entire surface of the cavity is formed into the desired shape, then cooled to shape, de-molded, and finally the product is obtained

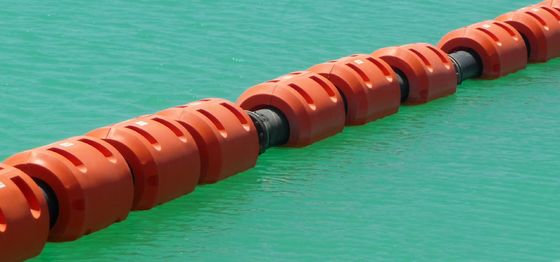

Durable and Lightweight HDPE Pipe Floaters for Safe and Dredging Applications 0

Characteristic:
* Size Range: 110mm to 1150
* Buoyancy: 150 kgs to 6500kgs
* 1. Low cost of rolling short mold: For products with the same specifications and sizes, the cost of rotoplastic mold is much lower than that of blow molding and injection molding.
2.The edge strength of rotoplastic products is good, and the thickness of the edge of the products is thicker. Solve the problem of thin edges of products in the middle room 3, Rotomolding can be placed in various inlay 4, the shape of rotomolding products can be diversify 5, Rotomolding products can be produced fully closed products, can be filled with foam materials to achieve insulation 7, We can adjust the thickness without modifying the mold.

Durable and Lightweight HDPE Pipe Floaters for Safe and Dredging Applications 1
Durable and Lightweight HDPE Pipe Floaters for Safe and Dredging Applications 2
