Product Details:
|
Name: | HDPE Pipe Floats For Floating Dredge Pipes | Material: | PE &PU Foam |
---|---|---|---|
Production: | Rotational Molding | Color: | As Request |
Connection: | Galvanised Bolts Nuts And Washers | Out Shell Thick: | 4~16mm |
High Light: | poly pipe floats buoyancy 150kg,Water Poly Pipe Floats,water pipe float Buoyancy 150kg |

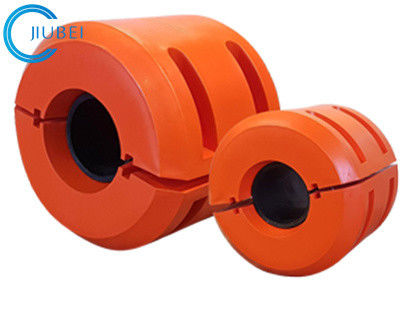

HDPE Pipe Floats for Floating Dredge Pipes
1. The floats using synthetic materials with high density, corrosion resistance, weather resistance, long life, anti-corrosion, antifreeze, anti-oxidation, anti-purple line of reinforced materials, not seawater, chemicals, pharmaceuticals, oil and water erosion; no pollution, no damage to the environment.
2. The floater toughness is good, strong resistance to environmental stress cracking, suitable for building the sea and lakes; body on the surface of the anti-slip pattern design, safe and secure; four corners are arc obtuse angle modeling, in order to avoid the general cement, wood, iron facilities common danger.
3. High load-bearing capacity, light weight, wear resistance, easy to install and transport, shipping costs are low, the cylinder is stable, durable, buoyancy per square meter up to 350kg or more.
4. the product life of more than 15 years, in addition to strong natural force and artificial improper use, without maintenance, maintenance costs.
5, easy assembly, fast, flexible, various shapes.
PE Float Dimension:
Float I.D. (mm) |
Float O.D.(mm) | Float Length(mm) |
Thickness of Hull(mm) |
Floater Buoyancy (kg) |
110 | 500 | 500 | 7 | 98 |
125 | 500 | 800 | 7 | 150 |
160 | 500 | 800 | 7 | 145 |
220 | 600 | 700 | 7 | 180 |
250 | 600 | 700 | 7 | 175 |
280 | 700 | 900 | 7 | 340 |
310 | 900 | 1000 | 8 | 550 |
320 | 1000 | 1000 | 9 | 650 |
350 | 950 | 1000 | 9 | 600 |
390 | 1000 | 1000 | 9 | 600 |
400 | 1100 | 1100 | 9 | 900 |
450 | 1200 | 1200 | 11 | 1100 |
460 | 1300 | 1300 | 12 | 1400 |
495 | 1300 | 1300 | 12 | 1400 |
520 | 1300 | 1450 | 12 | 1500 |
550 | 1300 | 1500 | 12 | 1750 |
560 | 1400 | 1500 | 12 | 1900 |
600 | 1400 | 1600 | 13 | 2100 |
620 | 1450 | 1700 | 13 | 2400 |
670 | 1500 | 1860 | 14 | 2800 |
720 | 1500 | 1860 | 14 | 2800 |
735 | 1500 | 1800 | 14 | 2700 |
760 | 1800 | 2050 | 15 | 3100 |
800 | 1800 | 2160 | 15 | 3300 |
890 | 2000 | 2400 | 15 | 4600 |
940 | 2040 | 2500 | 16 | 4900 |
1040 | 2400 | 2600 | 16 | 7000 |
1140 | 2300 | 2550 | 16 | 7000 |
