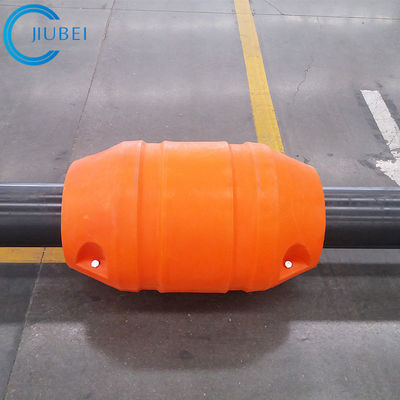

Red Orange Foam Buoy Float Collar Hdpe Pipe Flotation Rotational Molded

MOQ: 10 pairs
Price: USD50~500/pair
Standard Packaging: STANDARD SEA WORTHY PACKAGE
Delivery Period: 10days
Supply Capacity: 300pairs/month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JiuBei
Certification
ISO
Model Number
DN400 PE pipe float
Name:
Rotational Molded Orange Color Dredging Pipe Float For Sand /slurry Dredging Project
Color:
Orange /Yellow
Material:
PE /PU
Connection:
Galvanised Bolts Nuts And Washers
Dimension:
DN60-1200mm
Production Method:
Rotational Molding
Highlight:

float collar buoy

,

red buoy float

,

flotation buoy

Product Description

Rotational molded orange color dredging pipe float for sand /slurry dredging project



The pontoon has good toughness, strong resistance to environmental stress cracking, and is suitable for construction at sea and in lakes; The upper surface of the body is designed with anti-skid pattern, which is safe and stable; The four corners are of arc obtuse angle shape to avoid the common dangers of common cement, wood and iron facilities.

High bearing capacity, light weight, strong wear resistance, easy installation and handling, low transportation and transfer cost, stable and durable cylinder, with a buoyancy of more than 350kg per square meter.



PE Float Dimension:

Float I.D.
(mm)		 Float O.D.(mm) Float
Length(mm)		 Thickness
of Hull(mm)		 Floater
Buoyancy (kg)
110 500 500 7 98
125 500 800 7 150
160 500 800 7 145
220 600 700 7 180
250 600 700 7 175
280 700 900 7 340
310 900 1000 8 550
320 1000 1000 9 650
350 950 1000 9 600
390 1000 1000 9 600
400 1100 1100 9 900
450 1200 1200 11 1100
460 1300 1300 12 1400
495 1300 1300 12 1400
520 1300 1450 12 1500
550 1300 1500 12 1750
560 1400 1500 12 1900
600 1400 1600 13 2100
620 1450 1700 13 2400
670 1500 1860 14 2800
720 1500 1860 14 2800
735 1500 1800 14 2700
760 1800 2050 15 3100
800 1800 2160 15 3300
890 2000 2400 15 4600
940 2040 2500 16 4900
1040 2400 2600 16 7000
1140 2300 2550 16 7000
(Support customization)

Red Orange Foam Buoy Float Collar Hdpe Pipe Flotation Rotational Molded 0Red Orange Foam Buoy Float Collar Hdpe Pipe Flotation Rotational Molded 1

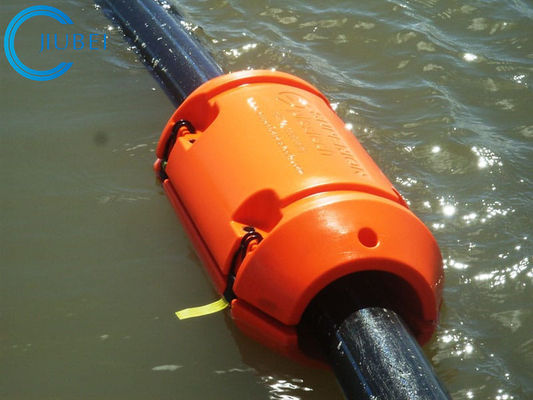

Inspection of Rotational molded orange color dredging pipe float for sand /slurry dredging project:

Red Orange Foam Buoy Float Collar Hdpe Pipe Flotation Rotational Molded 2
