Product Details:
|
Name: | Shandong Jiubei HDPE Dredging Pipe Floats Are Ideal Replacements For Steel Pontoons | Application: | Marine/River/Lake/Other |
---|---|---|---|
Buoyancy: | Customized | Color: | White/Black/Blue/Green/Red/Yellow/Orange |
Height: | Customized | Length: | Customized |
Material: | PE/Foam | Shape: | Round |
Size: | Customized | Surface: | Smooth/Rough |
Highlight: | Customized Dredging Pipe Floats,Round HDPE Dredging Pipe Floats,HDPE Dredging Floats |

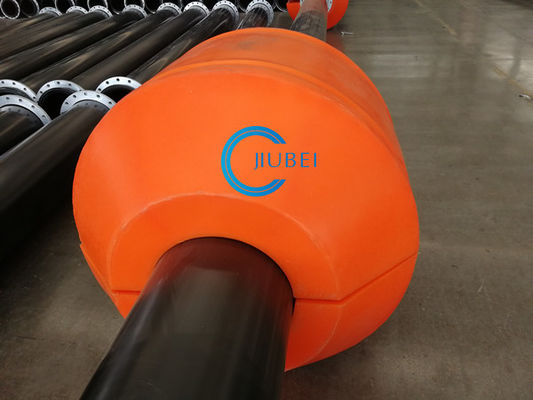

Name: Shandong Jiubei HDPE dredging pipe floats are ideal replacements for steel pontoons
The plastic pipe floating body is a new environmental protection material produced by the high molecular weight and high density synthetic material HDPE (high molecular weight polyethylene), in which anti ultraviolet substances are added. It has sufficient toughness and hardness, can withstand natural environment changes and low-temperature attacks, and is light in weight, large in buoyancy, acid and alkali resistance, zero maintenance, flexible in combination and transformation, long in life, bright and beautiful in color, anti-corrosion, antifreeze, anti ultraviolet and anti-aging, free from seawater, chemicals The erosion of chemicals, oil stains, and aquatic organisms is pollution-free and does not damage the environment. The entire plastic pipeline floating body is formed seamlessly, without water seepage or storage problems, and can be recycled and reused. This product has been widely used at home and abroad.
Polyethylene float, advantages of professional sand suction float
a. Light weight and high buoyancy
b. Resistance to impact, acid and alkali corrosion, etc
c. Low absorption rate
d. Simple construction and low maintenance costs
e. Temperature resistance range -60-80 ℃
Technical parameters of Shandong Jiubei HDPE dredging pipe floats are ideal replacements for steel pontoons:
No. | Item | Performance | |
1 | Tensile Strength Mpa≥ | 12 | |
2 | Elongation at break %≥ | 10 | |
3 | Impact Strength KJ/㎡ | 31 | |
4 | Bending Strength Mpa≥ | 15.7 | |
5 |
Weather Resistance (total 3.5GJ/㎡ aging capacity) |
Elongation at break %≥ |
10 |
6 | OIT 200℃ mm≥ | 10 |
Dimension of Shandong Jiubei HDPE dredging pipe floats are ideal replacements for steel pontoons
Float I.D. (mm) |
Float O.D.(mm) | Float Length(mm) |
Thickness of Hull(mm) |
Floater Buoyancy (kg) |
110 | 500 | 500 | 7 | 98 |
125 | 500 | 800 | 7 | 150 |
160 | 500 | 800 | 7 | 145 |
220 | 600 | 700 | 7 | 180 |
250 | 600 | 700 | 7 | 175 |
280 | 700 | 900 | 7 | 340 |
310 | 900 | 1000 | 8 | 550 |
320 | 1000 | 1000 | 9 | 650 |
350 | 950 | 1000 | 9 | 600 |
390 | 1000 | 1000 | 9 | 600 |
400 | 1100 | 1100 | 9 | 900 |
450 | 1200 | 1200 | 11 | 1100 |
460 | 1300 | 1300 | 12 | 1400 |
495 | 1300 | 1300 | 12 | 1400 |
520 | 1300 | 1450 | 12 | 1500 |
550 | 1300 | 1500 | 12 | 1750 |
560 | 1400 | 1500 | 12 | 1900 |
600 | 1400 | 1600 | 13 | 2100 |
620 | 1450 | 1700 | 13 | 2400 |
670 | 1500 | 1860 | 14 | 2800 |
720 | 1500 | 1860 | 14 | 2800 |
735 | 1500 | 1800 | 14 | 2700 |
760 | 1800 | 2050 | 15 | 3100 |
800 | 1800 | 2160 | 15 | 3300 |
890 | 2000 | 2400 | 15 | 4600 |
940 | 2040 | 2500 | 16 | 4900 |
1040 | 2400 | 2600 | 16 | 7000 |
1140 | 2300 | 2550 | 16 | 7000 |
Detail pictures:
RFQ:
A: Both languages are okay to us. Please don't worry.
A: Of course, we can design the logo for you or mark the logo on the product according to your requirements.
A: First of all, if what you need is our standard size product, we can produce it for you when we produce other products of the same size. Secondly, if you need non-standard products, we can customize them according to your requirements. But considering the cost of production and transportation, we suggest you refer to our standard specifications.
A: We have a professional logistics team, which can perfectly solve your transportation problems and timely give you tracking feedback on logistics.
