Product Details:
|
| Material: | PE &PU Foam | Out Shell Thick: | 5~12mm |
|---|---|---|---|
| Color: | Orange /Yellow | Connection: | Hot Galvanised Bolts, Nuts And Washers |
| Highlight: | Lake Dredging Pipe Floats,High Buoyancy Dredging Pipe Floats,PU Foam Filled Pipe Floater |
||

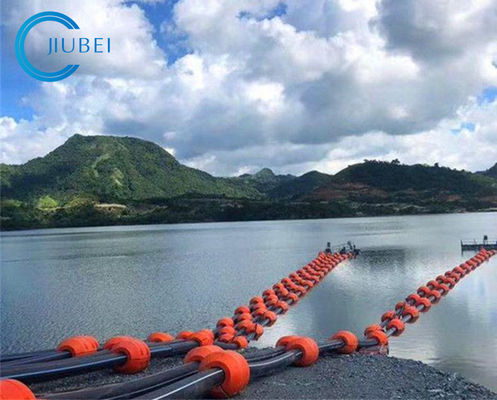

Name: UV resistant high buoyancy lake/river/sea dredging floating Pipe floaters with high density PU foam filled
The pipe floaters’ shell supplied by Shandong Shandong Jiubei New Material is made of medium-density polyethylene with high extrusion strength and high toughness, also we have UV resistant additives added in the hull raw material, which help make the pipe floater UV resistant and extend the using life. The plastic shell is filled with high-strength and high-buoyancy polyurethane foam material. The product has beautiful appearance and superior internal physical properties. The floating body is impact resistant, wind and wave resistant, reasonable and compact in structure, and easy to install.
The pipe floaters can match with all kinds of dredging pipeline, like UHMWPE pipeline, HDPE pipeline, PVC pipeline, steel pipeline and so on.
Benefits of the pipe floaters:
1, Environmental
2, Color bright
3, Easy installation
4 Impact resistance
5 long life using
6 UV resistant
Features:
l. Made in two sections that can be bolted together.
l .Capacity is based on fully submerged float.
l .Standard Color--Orange, other color options are available.
l. Galvanized steel bolts,nuts and washers are included.
l .High impact and UV-stabilsed polyethylene construction.
Mechanical Strength of Floater:
| No. | Item | Performance | |
| 1 | Tensile Strength Mpa≥ | 12 | |
| 2 | Elongation at break %≥ | 10 | |
| 3 | Impact Strength KJ/㎡ | 31 | |
| 4 | Bending Strength Mpa≥ | 15.7 | |
| 5 |
Weather Resistance (total 3.5GJ/㎡ aging capacity) |
Elongation at break %≥ |
10 |
| 6 | OIT 200℃ mm≥ | 10 | |
Dimension:
| Float I.D. (mm) |
Float O.D.(mm) | Float Length(mm) |
Thickness of Hull(mm) |
Floater Buoyancy (kg) |
| 110 | 500 | 500 | 7 | 98 |
| 125 | 500 | 800 | 7 | 150 |
| 160 | 500 | 800 | 7 | 145 |
| 220 | 600 | 700 | 7 | 180 |
| 250 | 600 | 700 | 7 | 175 |
| 280 | 700 | 900 | 7 | 340 |
| 310 | 900 | 1000 | 8 | 550 |
| 320 | 1000 | 1000 | 9 | 650 |
| 350 | 950 | 1000 | 9 | 600 |
| 390 | 1000 | 1000 | 9 | 600 |
| 400 | 1100 | 1100 | 9 | 900 |
| 450 | 1200 | 1200 | 11 | 1100 |
| 460 | 1300 | 1300 | 12 | 1400 |
| 495 | 1300 | 1300 | 12 | 1400 |
| 520 | 1300 | 1450 | 12 | 1500 |
| 550 | 1300 | 1500 | 12 | 1750 |
| 560 | 1400 | 1500 | 12 | 1900 |
| 600 | 1400 | 1600 | 13 | 2100 |
| 620 | 1450 | 1700 | 13 | 2400 |
| 670 | 1500 | 1860 | 14 | 2800 |
| 720 | 1500 | 1860 | 14 | 2800 |
| 735 | 1500 | 1800 | 14 | 2700 |
| 760 | 1800 | 2050 | 15 | 3100 |
| 800 | 1800 | 2160 | 15 | 3300 |
| 890 | 2000 | 2400 | 15 | 4600 |
| 940 | 2040 | 2500 | 16 | 4900 |
| 1040 | 2400 | 2600 | 16 | 7000 |
| 1140 | 2300 | 2550 | 16 | 7000 |
Detail images:
