Product Details:
|
Name: | High Impact Resistant Orange Color Dredging Pipe Floats | Application: | Dredging |
---|---|---|---|
Connection: | Hot Galvanised Bolts, Nuts And Washers | Outshell: | Medium Density Polyethylene |
Foam: | High Density Ployurethane | MOQ: | 10 Pairs |
Highlight: | pipe hose float,Poly Pipe Floats 500mm,Dredging Floaters 500mm |

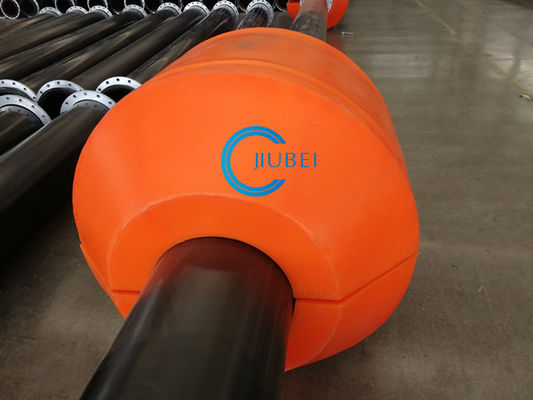

High Impact Resistant Orange Color Dredging Pipe Floats
Medium density polyethylene floating body is a new product produced by our company. The shell of this product is made of medium density polyethylene with excellent toughness and filled with high-strength polyurethane foam. Reasonable structure and excellent performance. As a floating material for the water sludge discharge pipe, it has become a substitute for the traditional steel pontoon.
Product performance characteristics:
1. Good toughness and excellent impact resistance, especially suitable for offshore construction.
2. Light weight, easy to install and carry, and low transportation and transfer cost.
3. Wear resistance and long service life.
4. The price is low, and the performance-price ratio is significantly better than the steel buoy.
Note:
1. Two sections of the floating body are one group (one section consists of two pieces), which can float up to 6 meters of mud pipe and 1.5 meters of rubber hose;
2. Floating bodies of various specifications with an outer diameter of 4 meters and a length of less than 4 meters can be produced.
High Impact Resistant Orange Color Dredging Pipe Floats Specification:
Item | Out shell data | Item | Inner Foam |
Tensile Strength | ≥13.1MPa | Absorption | 1-2g/100cm2 |
Elongation at break | ≥11.1% | Breaking Strength | 0.08-0.1MPa |
Impact strength | ≥32.1KJ/m2 | Elongation at break | 4-6% |
Bending Strength | ≥15.7MPa | Compressive strength | 0.1-0.24MPa |
High Impact Resistant Orange Color Dredging Pipe Floats Dimension:
Float I.D. (mm) |
Float O.D.(mm) | Float Length(mm) |
Thickness of Hull(mm) |
Floater Buoyancy (kg) |
110 | 500 | 500 | 7 | 98 |
125 | 500 | 800 | 7 | 150 |
160 | 500 | 800 | 7 | 145 |
220 | 600 | 700 | 7 | 180 |
250 | 600 | 700 | 7 | 175 |
280 | 700 | 900 | 7 | 340 |
310 | 900 | 1000 | 8 | 550 |
320 | 1000 | 1000 | 9 | 650 |
350 | 950 | 1000 | 9 | 600 |
390 | 1000 | 1000 | 9 | 600 |
400 | 1100 | 1100 | 9 | 900 |
450 | 1200 | 1200 | 11 | 1100 |
460 | 1300 | 1300 | 12 | 1400 |
495 | 1300 | 1300 | 12 | 1400 |
520 | 1300 | 1450 | 12 | 1500 |
550 | 1300 | 1500 | 12 | 1750 |
560 | 1400 | 1500 | 12 | 1900 |
600 | 1400 | 1600 | 13 | 2100 |
620 | 1450 | 1700 | 13 | 2400 |
670 | 1500 | 1860 | 14 | 2800 |
720 | 1500 | 1860 | 14 | 2800 |
735 | 1500 | 1800 | 14 | 2700 |
760 | 1800 | 2050 | 15 | 3100 |
800 | 1800 | 2160 | 15 | 3300 |
890 | 2000 | 2400 | 15 | 4600 |
940 | 2040 | 2500 | 16 | 4900 |
1040 | 2400 | 2600 | 16 | 7000 |
1140 | 2300 | 2550 | 16 | 7000 |
