Product Details:
|
| Name: | HDPE Pipe | Material: | PE100 HDPE |
|---|---|---|---|
| Color: | Black Or Customer Made | Length: | As Request |
| Connection: | Welding Or Steel Flange | Application: | Dredging |
| High Light: | Hdpe Dredge Pipe For Sale,High Density Polyethylene Hdpe Dredge Pipe,dredging hdpe pipe PE100 |
||
Floating Pipeline Dredge Pipe For HDPE Sand Extraction Pipes
The flanged HDPE dredging pipe is easy to be connected, which reduced the swings caused by the waves and makes the medium smoother in the pipe.
The HDPE dredging pipes are used for drainage, water-logging, dredging and sand discharging of port.
Dimension:
|
Outside Diameter(mm) |
Wall thickness(mm) | ||||
| SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | |
| 0.4Mpa | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
| 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | |
| 800 | 30.6 | 38.1 | 47.4 | 58.9 | |
| 900 | 34.4 | 42.9 | 53.3 | 66.2 | |
| 1000 | 39.2 | 47.7 | 59.3 | 73.6 | |
| 1200 | 45.9 | 57.2 | 70.6 | ||
| 1400 | 53.9 | 66.7 | 82.4 | ||
| 1600 | 61.6 | 76.2 | 94.2 | ||

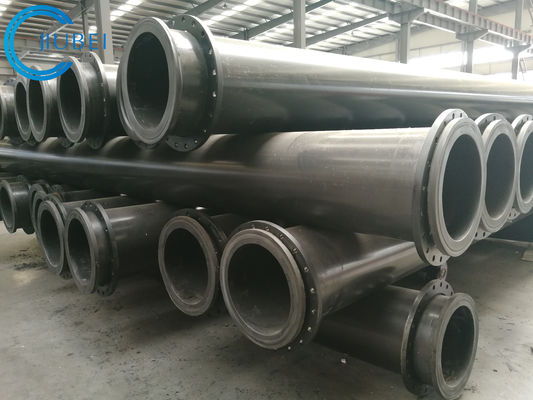

Detail images:
