Product Details:
|
| Name: | PE100 Dredging HDPE Pipe For Sand/slurry Discharging | Material: | PE 100 |
|---|---|---|---|
| Connection: | Galvanised Bolts Nuts And Washers | Accessories: | HDPE STUB END AND STEEL BACK RING |
| LENGTH: | CUSTOMIZED | MOQ: | 100m |
| Highlight: | High Density Polyethylene Dredging HDPE Pipe,Dredging HDPE Pipe Discharge,dredge pipe |
||
Water Sand Pump HDPE Pipe Used Dredging Project

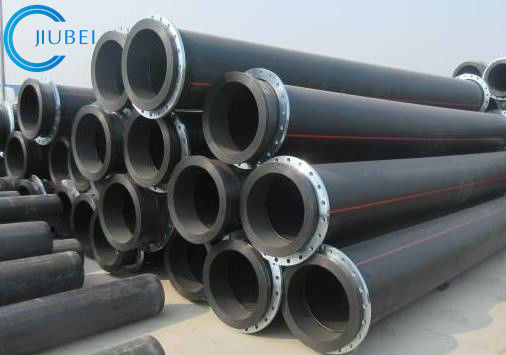

HDPE dredging pipes have unique properties for long-term, corrosion-free, abrasion-resistant and low-maintenance performance in the oceans, lakes and all other bodies of water. Our high density PE pipes are fitted with welded stub ends & steel flanges.
Our excavator pipes are made from pure compounded HDPE material for high performance. Higher abrasion resistant grades also available.
Special focus on supporting the whole dredger pipeline products design and development, we have a professional dredging workshop for rubber hose, plastic pipes, plastic floater mold design and manufacture. Specification and size can be customized according to customers' requirements.
Dimension of HDPE dredging pipe:
|
Outside Diameter(mm) |
Wall thickness(mm) | ||||
| SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | |
| 0.4Mpa | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
| 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | |
| 800 | 30.6 | 38.1 | 47.4 | 58.9 | |
| 900 | 34.4 | 42.9 | 53.3 | 66.2 | |
| 1000 | 39.2 | 47.7 | 59.3 | 73.6 | |
| 1200 | 45.9 | 57.2 | 70.6 | ||
| 1400 | 53.9 | 66.7 | 82.4 | ||
| 1600 | 61.6 | 76.2 | 94.2 | ||
