Product Details:
|
Name: | Plastic Pontoon Floats For Floating Round Pipeline On Water | Material: | Out Shell PE, Inner Foam: PU |
---|---|---|---|
Color: | As Request | Shape: | Clinder |
Application: | Dredging And Cable Floating | Warranty: | 12 Months |
High Light: | polyethylene floats manufacturers,hdpe pontoon floats,Polyethylene Foam Float JiuBei |

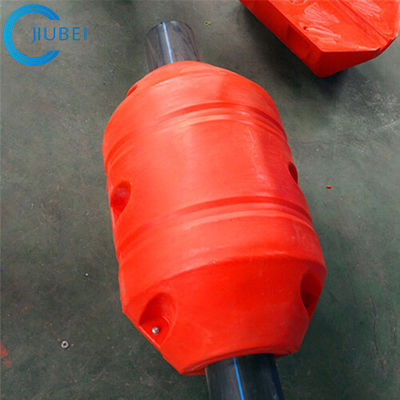

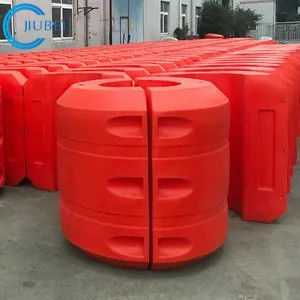

Plastic Pontoon Floats For Floating Round Pipeline On Water
Dredging Pipe Floatss is made from medium density polyethylene material with excellent flexibility,filled with high strength polyurethane foam inside.With reasonable structure and good performance,the MDPE floater becomes the ideal substitution of the traditional steel steel floater for the floating dredging pipe.
Application:
Mainly used for oceans, lakes, ship, and blow a large junk, sand-excavating dredging pipeline laying in the water.
Features:
A, ensure transmit floating of the pipeline
B, the appearance of the orange color can be used as a warning sign, prevent hit pipeline
C, convenient transportation pipeline check and repair
D, shorten the construction period, reduce cost, reduce maintenance costs
Remarks:
1.2 pieces of floaters form of 1 set,2 sets of floaters form 1 pair,1 pair of floaters could float 6 meter long steel dredging pipe and 1.5 meter long rubber hose.
2.The floaters under the size of O.D 4mxL4m are all available.
PE Float Dimension:
Float I.D. (mm) |
Float O.D.(mm) | Float Length(mm) |
Thickness of Hull(mm) |
Floater Buoyancy (kg) |
110 | 500 | 500 | 7 | 98 |
125 | 500 | 800 | 7 | 150 |
160 | 500 | 800 | 7 | 145 |
220 | 600 | 700 | 7 | 180 |
250 | 600 | 700 | 7 | 175 |
280 | 700 | 900 | 7 | 340 |
310 | 900 | 1000 | 8 | 550 |
320 | 1000 | 1000 | 9 | 650 |
350 | 950 | 1000 | 9 | 600 |
390 | 1000 | 1000 | 9 | 600 |
400 | 1100 | 1100 | 9 | 900 |
450 | 1200 | 1200 | 11 | 1100 |
460 | 1300 | 1300 | 12 | 1400 |
495 | 1300 | 1300 | 12 | 1400 |
520 | 1300 | 1450 | 12 | 1500 |
550 | 1300 | 1500 | 12 | 1750 |
560 | 1400 | 1500 | 12 | 1900 |
600 | 1400 | 1600 | 13 | 2100 |
620 | 1450 | 1700 | 13 | 2400 |
670 | 1500 | 1860 | 14 | 2800 |
720 | 1500 | 1860 | 14 | 2800 |
735 | 1500 | 1800 | 14 | 2700 |
760 | 1800 | 2050 | 15 | 3100 |
800 | 1800 | 2160 | 15 | 3300 |
890 | 2000 | 2400 | 15 | 4600 |
940 | 2040 | 2500 | 16 | 4900 |
1040 | 2400 | 2600 | 16 | 7000 |
1140 | 2300 | 2550 | 16 | 7000 |
