PRODUCTS DETAILS

Home > Products >

Black With Blue Strips PN10 ISO4427 HDPE Pipe For Water Supplying System Supplier

Products

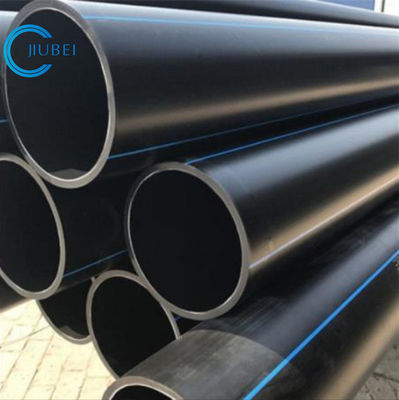

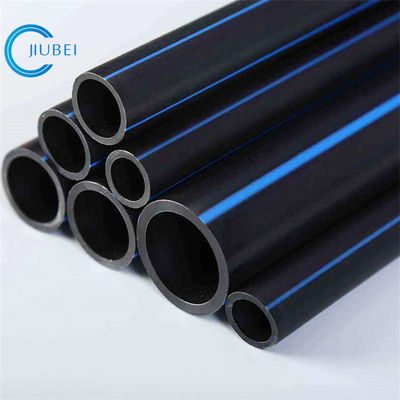

Black With Blue Strips PN10 ISO4427 HDPE Pipe For Water Supplying System Supplier

MOQ:	200m
Price:	15-30 usd/m
Standard Packaging:	STANDARD SEA WORTHY PACKAGING
Delivery Period:	15days
Payment Method:	tt
Supply Capacity:	2000M/MONTH

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Jiubei

Certification

ISO, SGS

Model Number

DN630

Density:

0.945

Pressure:

0.4~2.0Mpa

Thickness:

Customized

Tensile Strength:

Color:

Black With Blue Strips

Corrosion Resistance:

Excellent

Application:

Dredging, Water Supplying

Diameter:

Customized

Highlight:

Water Supplying System Flanged HDPE Pipe

ISO4427 HDPE Pipe

PN10 Dredge Pipe

Product Description

Product Description:

Features:

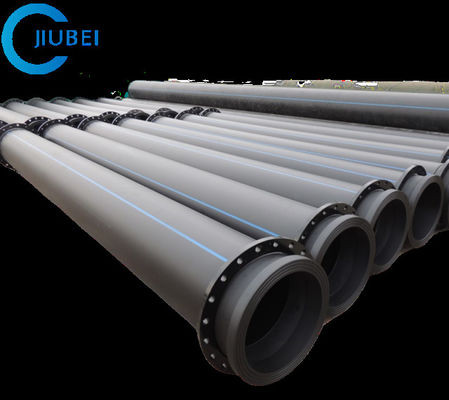

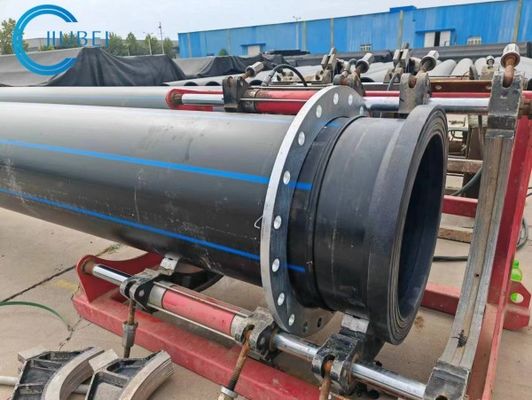

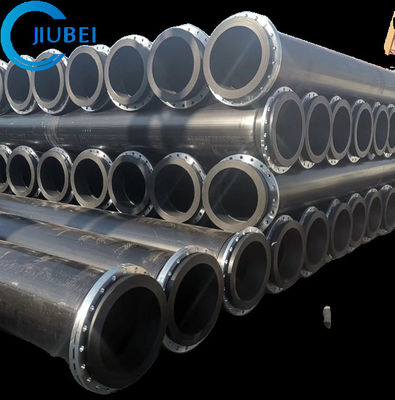

The flanged HDPE dredging pipe is designed for easy and efficient connectivity, minimizing the effects of wave-induced swings and providing a smoother flow for the medium within the pipe.

Made of high-density polyethylene, these dredging pipes are specifically designed for drainage, water-logging, dredging, and sand discharging in ports, ensuring efficient and effective operations.

Technical Parameters:

Requirements for the Quality of the Pipe

The quality of the pipe is an important aspect that needs to be carefully considered. The following are the requirements that must be met for the proper functioning of the pipe:

No. Item: Elongation at break

Requirements: The elongation at break must be equal to or more than 350%.

No. Item: Longitudinal reversion (100℃)

Requirements: The longitudinal reversion at 100℃ must be less than or equal to 3%.

No. Item: Oxidation induction time (200℃)

Requirements: The oxidation induction time at 200℃ must be equal to or more than 20 minutes.

No. Item: Weather resistance after aging energy acceptance

Requirements: After the pipe has accepted aging energy equal to or more than 3.5GJ/㎡, it must meet the following requirements:

Static hydraulic strength at 80℃ for 165 hours: non-breakage and leakage
Percentage of breaking-elongation: equal to or more than 350%
Oxidation induction time (200℃): equal to or more than 10 minutes

No.	Item		Requirements
1	Elongation at break%		≥350
2	Longitudinal reversion(100℃), ％		≤3
3	Oxidation induction time(200℃)min		≥20
4	Weather resistance after the pipe has accepted the aging energy which equal to or more than 3.5GJ/㎡≤	80℃ static hydraulic strength(165h)	Non breakage and leakage
		Percentage of breaking-elongation,％	≥350
		Oxidation induction time(200℃)min	≥10

Applications:

Product Description

The Dredging HDPE Pipe by Jiubei is the perfect solution for all your dredging needs. Made from high-density polyethylene (HDPE) PE100 material, this pipe is highly durable and corrosion-resistant, making it suitable for use in various applications. The pipe is available in a standard size of DN400 and can be customized to meet your specific requirements.

The Dredging HDPE Pipe by Jiubei is highly abrasion-resistant, making it suitable for use in dredging and other applications where it may encounter rough surfaces.

Application: Dredging, Water Supplying

The Dredging HDPE Pipe is suitable for use in dredging operations as well as for water supplying, providing a versatile solution for various industries and projects.
