Product Details:
|
Density: | 0.945 | Abrasion Resistance: | Excellent |
---|---|---|---|
Impact Resistance: | Excellent | Application: | Dredging, Water Supplying |
Temperature: | -60~80degree | Corrosion Resistance: | Excellent |
Material: | HDPE PE100 | Length: | 5.8/11.8m Per Length |
Highlight: | Drainage Dredging HDPE Pipe,DN500 HDPE Pipeline,Welding Connection HDPE Pipeline |

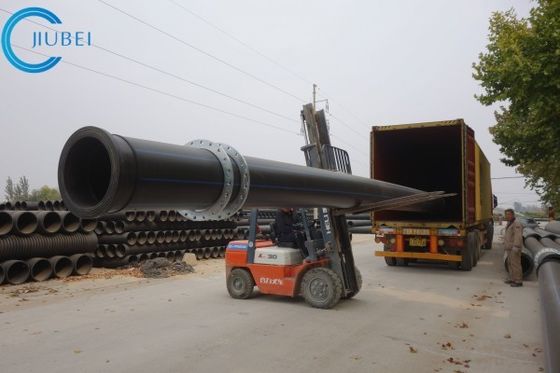

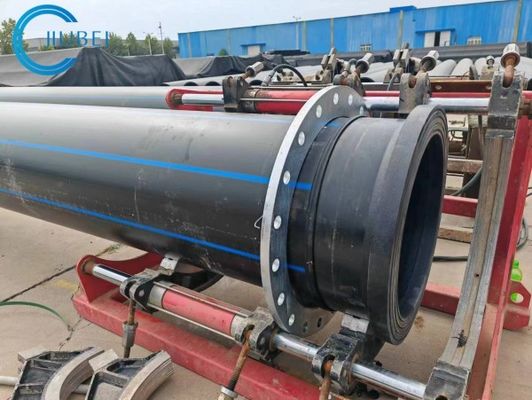

The HDPE dredging pipe with flanged ends offers convenient connection, effectively reducing the impact of waves and creating a smoother flow for the transported medium.
These HDPE dredging pipes are ideal for various applications such as drainage, waterlogging, dredging, and sand discharging in ports.
Below are the necessary requirements for the performance of the pipe material, including elongation at break, longitudinal reversion, oxidation induction time, and weather resistance.
1. Elongation at break should be equal to or greater than 350%.
2. Longitudinal reversion at 100℃ should not exceed 3%.
3. The oxidation induction time at 200℃ should be at least 20 minutes.
4. After receiving an aging energy of 3.5GJ/㎡ or higher, the pipe should have weather resistance and be able to withstand a static hydraulic strength of 80℃ for 165 hours without any breakage or leakage.
5. The percentage of breaking-elongation should be equal to or greater than 350%.
6. The oxidation induction time at 200℃ should be at least 10 minutes.
No. | Item | Requirements | |
1 | Elongation at break% | ≥350 | |
2 | Longitudinal reversion(100℃), % | ≤3 | |
3 | Oxidation induction time(200℃)min | ≥20 | |
4 | Weather resistance after the pipe has accepted the aging energy which equal to or more than 3.5GJ/㎡≤ | 80℃ static hydraulic strength(165h) | Non breakage and leakage |
Percentage of breaking-elongation,% | ≥350 | ||
Oxidation induction time(200℃)min | ≥10 |

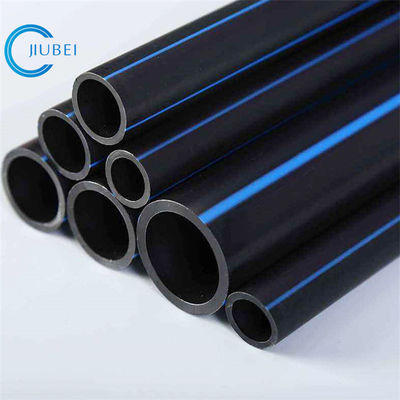

The Dredging HDPE Pipe, also known as slurry pipe, is a high-quality product from Jiubei with a model number of DN400. It is manufactured in China and has obtained ISO and SGS certification, ensuring its reliability and quality.
This product is mainly used in dredging projects, such as river and harbor dredging, land reclamation, and beach nourishment. It is also suitable for use in mining, sewage treatment, and other industries that require the transportation of slurries.
The Dredging HDPE Pipe from Jiubei has the following features:
The Dredging HDPE Pipe from Jiubei is a reliable and durable product that is suitable for a variety of applications. Its high-quality material, excellent impact resistance, and attractive design make it a popular choice for customers all over the world. With a minimum order quantity of 200m and a monthly supply ability of 2000m, this product is readily available for all your dredging needs.
