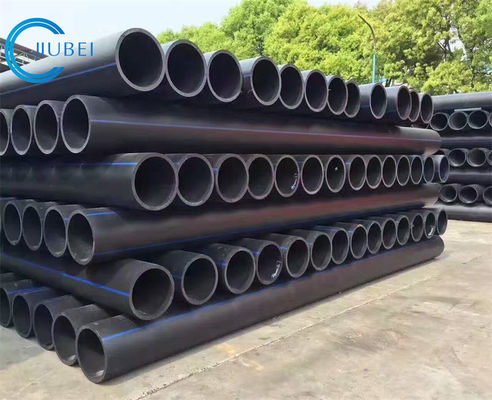

Excellent Flexibility PE100 HDPE Pipe For Extreme Dredging Conditions

Certification
China Shandong Jiubei Trading Co., Ltd certification
Customer Reviews
Very good quality pipe float, and wonderful service!

—— Abdulla

The rubber hose works very good, thank you!

—— Yaniv

Very good quality UHMWPE pipeline, excellent wear resistant ability, suitable for dredging and mining.

—— Arthur

I'm Online Chat Now

Excellent Flexibility PE100 HDPE Pipe For Extreme Dredging Conditions

Excellent Flexibility PE100 HDPE Pipe For Extreme Dredging Conditions
Excellent Flexibility PE100 HDPE Pipe For Extreme Dredging Conditions
Excellent Flexibility PE100 HDPE Pipe For Extreme Dredging Conditions Excellent Flexibility PE100 HDPE Pipe For Extreme Dredging Conditions Excellent Flexibility PE100 HDPE Pipe For Extreme Dredging Conditions Excellent Flexibility PE100 HDPE Pipe For Extreme Dredging Conditions Excellent Flexibility PE100 HDPE Pipe For Extreme Dredging Conditions Excellent Flexibility PE100 HDPE Pipe For Extreme Dredging Conditions

Large Image :  Excellent Flexibility PE100 HDPE Pipe For Extreme Dredging Conditions

Product Details:
Place of Origin: China
Brand Name: Jiubei
Certification: ISO, SGS
Model Number: DN600
Payment & Shipping Terms:
Minimum Order Quantity: 200m
Price: 15-30 usd/m
Packaging Details: STANDARD SEA WORTHY PACKAGING
Delivery Time: 15days
Payment Terms: tt
Supply Ability: 2000M/MONTH

Excellent Flexibility PE100 HDPE Pipe For Extreme Dredging Conditions

Description
Diameter: Customized Impact Resistance: Excellent
Thickness: Customized Pressure: 0.4~2.0Mpa
Material: HDPE PE100 Flexibility: Excellent
Color: Black With Blue Strips Length: 5.8/11.8m Per Length
High Light:

5.8m Dredging HDPE Pipe

,

Customized HDPE Dredge Pipe

,

Dredging PE100 HDPE Pipe

Product Description:

.

Features:

The Benefits of Flanged HDPE Dredging Pipes

The use of flanged HDPE dredging pipes offers numerous advantages in marine environments. These sturdy pipes are designed to easily connect together, reducing the effects of wave-induced swings and creating a smoother flow of media within the pipe.
These specialized pipes are specifically designed for drainage, water-logging, dredging, and sand discharging in ports. Their durability and flexibility make them an ideal choice for any marine application. Additionally, their high-density polyethylene (HDPE) construction provides exceptional resistance to corrosion, abrasion, and chemicals, making them a reliable option for long-term use.
With their easy connection and reliable performance, flanged HDPE dredging pipes are a preferred choice for many port and marine operations. They offer a cost-effective solution for managing water and sediment control, keeping ports navigable and safe for ships and vessels of all sizes.

Excellent Flexibility PE100 HDPE Pipe For Extreme Dredging Conditions 0

Technical Parameters:

Requirements for the Performance of Plastic Pipes
Item 1: Elongation at Break

The elongation at break percentage must be equal to or greater than 350%.

Item 2: Longitudinal Reversion at High Temperature

The longitudinal reversion at a temperature of 100℃ must be less than or equal to 3%.

Item 3: Oxidation Induction Time

The oxidation induction time at a temperature of 200℃ must be equal to or greater than 20 minutes.

Item 4: Weather Resistance and Static Hydraulic Strength

The pipe must maintain its performance after being exposed to an aging energy greater than or equal to 3.5GJ/㎡. It must be able to withstand a static hydraulic strength of 80℃ for a duration of 165 hours without any breakage or leakage. Additionally, the percentage of breaking-elongation must be equal to or greater than 350%, and the oxidation induction time at a temperature of 200℃ must be equal to or greater than 10 minutes.


Outside Diameter(mm)

Wall thickness(mm)
SDR26 SDR21 SDR17 SDR13.6 SDR11
0.4Mpa 0.6Mpa 0.8Mpa 1.0Mpa 1.25Mpa
110 4.2 5.3 6.6 8.1 10.0
125 4.8 6.0 7.4 9.2 11.4
160 6.2 7.7 9.5 11.8 14.6
180 6.9 8.6 10.7 13.3 16.4
200 7.7 9.6 11.9 14.7 18.2
225 8.6 10.8 13.4 16.6 20.5
250 9.6 11.9 14.8 18.4 22.7
280 10.7 13.4 16.6 20.6 25.4
315 12.1 15.0 18.7 23.2 28.6
355 13.6 16.9 21.1 26.1 32.2
400 15.3 19.1 23.7 29.4 36.3
450 17.2 21.5 26.7 33.1 40.9
500 19.1 23.9 29.7 36.8 45.4
560 21.4 26.7 33.2 41.2 50.8
630 24.1 30.0 37.4 46.3 57.2
710 27.2 33.9 42.1 52.2
800 30.6 38.1 47.4 58.9
900 34.4 42.9 53.3 66.2
1000 39.2 47.7 59.3 73.6
1200 45.9 57.2 70.6
1400 53.9 66.7 82.4
1600 61.6 76.2 94.2

Applications:

.Excellent Flexibility PE100 HDPE Pipe For Extreme Dredging Conditions 1Excellent Flexibility PE100 HDPE Pipe For Extreme Dredging Conditions 2
