Product Details:
|
| Name: | Orange/ Yellow HDPE Pipe Floater Is A Popular Floating Material For Dredger Pipelines | Dimension: | DN1100 |
|---|---|---|---|
| Advantages: | Lightweight, Corrosion Resistance | Application: | Floating Pipe |
| Buoyancy: | High | Color: | Orange, Yellow, Black, Blue, White, Etc. |
| Length: | Customized | Material: | HDPE |
| Service Life: | More Than 5 Years | Shape: | Cylindrical |
| Size: | Customized | Structure: | Integral |
| Surface: | Smooth | Thickness: | Customized |
| Weight: | Customized | Working Temperature: | -40℃~+50℃ |
| Highlight: | Smooth HDPE Pipe Floater,Cylindrical HDPE Pipe Floater,Dredger Pipelines HDPE Floaters |
||
Name: Orange/ yellow HDPE pipe floater is a popular floating material for dredger pipelines
The shell of our plastic floater is made of 100% virgin raw material of polyethylene through an advanced rotational molding
production process. Each molding product is produced without welding seams and is totally enclosed, which has the feature of anti-corrosion, anti-aging, resistance to impact and shock, no leakage, and filled with high density polyurethane foam. the floater has high buoyancy and can be used even if the shell is broken. the floater can be widely used in rivers, lakes and sea to support buoyancy of the pipe and has become the best subsitute for traditional steel buoyancy. the detailed application, model,shape,specification and size can be customized according to the customize.
PE floats is a popular floating material for dredger pipelines at home and abroad. It has the advantages of small size, light
weight, high buoyancy, wind and wave resistance, aging resistance, and long service life.
The structure and physical and mechanical properties of the PE Floats:
| Item | Out shell data | Item | Inner Foam |
| Tensile Strength | ≥13.1MPa | Absorption | 1-2g/100cm2 |
| Elongation at break | ≥11.1% | Breaking Strength | 0.08-0.1MPa |
| Impact strength | ≥32.1KJ/m2 | Elongation at break | 4-6% |
| Bending Strength | ≥15.7MPa | Compressive strength | 0.1-0.24MPa |
Dimension of Orange/ yellow HDPE pipe floater is a popular floating material for dredger pipelines:
| Float I.D. (mm) | Float O.D.(mm) | Float Length(mm) | Thickness of Hull(mm) | Floater Buoyancy (kg) |
| 110 | 500 | 500 | 7 | 98 |
| 125 | 500 | 800 | 7 | 150 |
| 160 | 500 | 800 | 7 | 145 |
| 220 | 600 | 700 | 7 | 180 |
| 250 | 600 | 700 | 7 | 175 |
| 280 | 700 | 900 | 7 | 340 |
| 310 | 900 | 1000 | 8 | 550 |
| 320 | 1000 | 1000 | 9 | 650 |
| 350 | 950 | 1000 | 9 | 600 |
| 390 | 1000 | 1000 | 9 | 600 |
| 400 | 1100 | 1100 | 9 | 900 |
| 450 | 1200 | 1200 | 11 | 1100 |
| 460 | 1300 | 1300 | 12 | 1400 |
| 495 | 1300 | 1300 | 12 | 1400 |
| 520 | 1300 | 1450 | 12 | 1500 |
| 550 | 1300 | 1500 | 12 | 1750 |
| 560 | 1400 | 1500 | 12 | 1900 |
| 600 | 1400 | 1600 | 13 | 2100 |
| 620 | 1450 | 1700 | 13 | 2400 |
| 670 | 1500 | 1860 | 14 | 2800 |
| 720 | 1500 | 1860 | 14 | 2800 |
| 735 | 1500 | 1800 | 14 | 2700 |
| 760 | 1800 | 2050 | 15 | 3100 |
| 800 | 1800 | 2160 | 15 | 3300 |
| 890 | 2000 | 2400 | 15 | 4600 |
| 940 | 2040 | 2500 | 16 | 4900 |
| 1040 | 2400 | 2600 | 16 | 7000 |
| 1140 | 2300 | 2550 | 16 | 7000 |

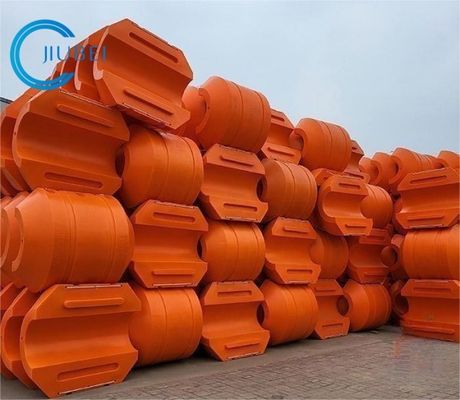

Detail pictures:
RFQ:
A: Both languages are okay to us. Please don't worry.
A: Of course, we can design the logo for you or mark the logo on the product according to your requirements.
A: First of all, if what you need is our standard size product, we can produce it for you when we produce other products of the same size. Secondly, if you need non-standard products, we can customize them according to your requirements. But considering the cost of production and transportation, we suggest you refer to our standard specifications.
A: We have a professional logistics team, which can perfectly solve your transportation problems and timely give you tracking feedback on logistics.
