Product Details:
|
Material: | Out Shell LLDPE, Inner Foam: PU | Color: | Orange /Yellow |
---|---|---|---|
INNER DIAMETER: | 355MM | Outside Diameter: | 800mm |
Length: | 800mm | Buoyancy: | 360kg |
Application: | Dredging, Cable Floating | ||
Highlight: | UHMWPE Pipe Floater,355mm HDPE Pipe Floaters,PU Foam Filled HDPE Floaters |

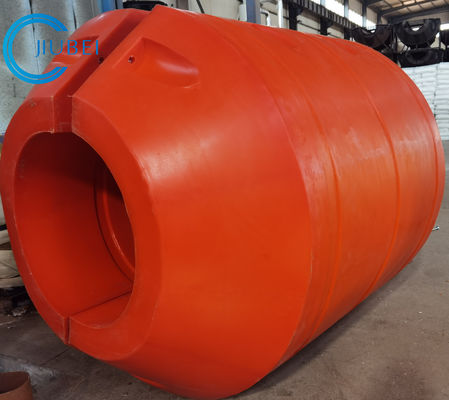

Introduction of UHMWPE/hdpe pipe floaters inner diameter355 mm with PU foam filled
The hull of PE floats are rotational molded from PE material, inside filled with high density polyurethane foam(Foam density varied from the pipe float using condition). The PE floats are most widely applied for dredging pipeline, and cable, it is ideal to replace the steel pontoons for the floating discharging pipe.
Dimension of UHMWPE/hdpe pipe floaters inner diameter355 mm with PU foam filled :
Name | I.D | O.D | Length | Weight | Buoyancy | Color | Inside |
Pipe floaters | 355mm | 800mm | 800mm | 33kg/pair | 360kg/pair | Orange/yellow | With PU foam filled |
Other reference dimension list:
PS: Customer made dimension available
Benefits of the PE pipe floaters:
a. Light weight and high buoyancy
b. Resistance to impact, acid and alkali corrosion, etc
c. Low absorption rate
d. Simple construction and low maintenance costs
e. Temperature resistance range -60-80 ℃
Polyethylene float, the function of professional sand suction float
a. Ensure that the conveying pipeline floats on water
b. The orange red appearance color can serve as a warning sign to prevent impact on pipelines
c. Convenient inspection and maintenance of conveying pipelines
d. Shorten the construction period, reduce costs, and reduce maintenance costs
Other Reference Dimension:
Float I.D. (mm) |
Float O.D.(mm) | Float Length(mm) |
Thickness of Hull(mm) |
Floater Buoyancy (kg) |
110 | 500 | 500 | 7 | 98 |
125 | 500 | 800 | 7 | 150 |
160 | 500 | 800 | 7 | 145 |
220 | 600 | 700 | 7 | 180 |
250 | 600 | 700 | 7 | 175 |
280 | 700 | 900 | 7 | 340 |
310 | 900 | 1000 | 8 | 550 |
320 | 1000 | 1000 | 9 | 650 |
350 | 950 | 1000 | 9 | 600 |
390 | 1000 | 1000 | 9 | 600 |
400 | 1100 | 1100 | 9 | 900 |
450 | 1200 | 1200 | 11 | 1100 |
460 | 1300 | 1300 | 12 | 1400 |
495 | 1300 | 1300 | 12 | 1400 |
520 | 1300 | 1450 | 12 | 1500 |
550 | 1300 | 1500 | 12 | 1750 |
560 | 1400 | 1500 | 12 | 1900 |
600 | 1400 | 1600 | 13 | 2100 |
620 | 1450 | 1700 | 13 | 2400 |
670 | 1500 | 1860 | 14 | 2800 |
720 | 1500 | 1860 | 14 | 2800 |
735 | 1500 | 1800 | 14 | 2700 |
760 | 1800 | 2050 | 15 | 3100 |
800 | 1800 | 2160 | 15 | 3300 |
890 | 2000 | 2400 | 15 | 4600 |
940 | 2040 | 2500 | 16 | 4900 |
1040 | 2400 | 2600 | 16 | 7000 |
1140 | 2300 | 2550 | 16 | 7000 |

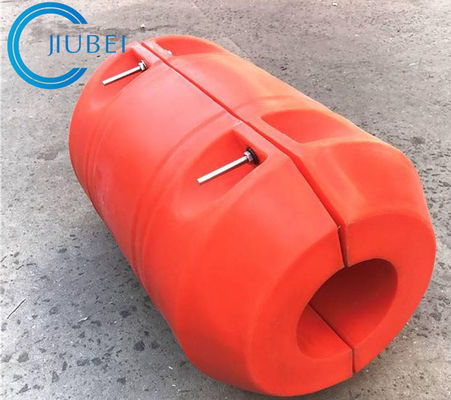

Inner Detail images of the pipe floaters:

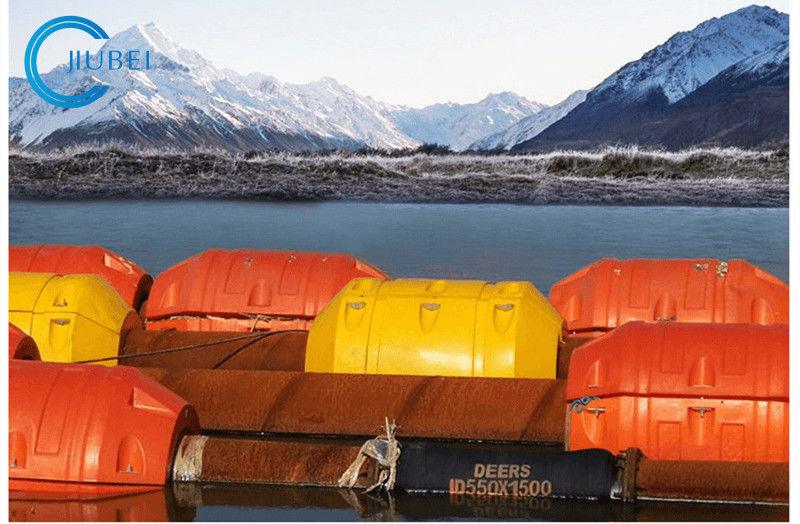

Installation:
