Product Details:
|
Name: | PE100 Dredging HDPE Pipe For Sand/slurry Discharging | Material: | PE 100 |
---|---|---|---|
Connection: | Galvanised Bolts Nuts And Washers | Accessories: | HDPE STUB END AND STEEL BACK RING |
LENGTH: | CUSTOMIZED | MOQ: | 100m |
Highlight: | dredge pipe pontoon,water pipe dredge,steel dredge pipe |

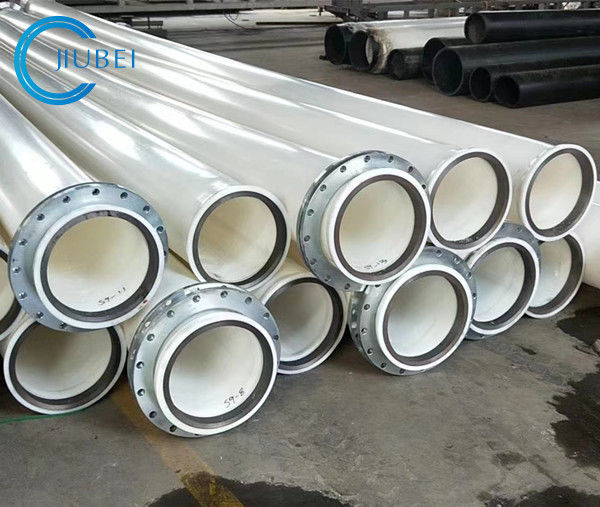

HDPE plastic Floating Dredge Pipe for Ssand/Slurry Dredging
Introduction on HDPE plastic Floating Dredge Pipe for Ssand/Slurry Dredging:
The inner wall of the PE water supply pipe is smooth and does not change with the time of use. The friction resistance is small, which saves energy. The pressure loss is about 30% smaller than that of the steel pipe. A smaller diameter than the steel pipe can be selected. Good hygienic performance, no additives, no possibility of polluting drinking water, ISO standard graded polyethylene material is 0 (lower grade), mold-free material, compared with other commonly used plastic materials, polyethylene's mold resistance It is much higher and does not accumulate scale after long-term use.
Benefits of HDPE plastic Floating Dredge Pipe for Ssand/Slurry Dredging:
1. Dredging Industry: Floating dredge pipe for river channel/sea shore/lake/pond, sand sunction/slurry dredge,
2. To transport natural gas & coal gas,
3. Food & chemical industry,
4. To transport ore & mud,
5. To replace cement pipe, cast iron pipe & steel pipe,
6. Landscaping pipeline,
7. City and town water supply
Dimension of HDPE dredging pipe:
Outside Diameter(mm) |
Wall thickness(mm) | ||||
SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | |
0.4Mpa | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | |
110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 |
710 | 27.2 | 33.9 | 42.1 | 52.2 | |
800 | 30.6 | 38.1 | 47.4 | 58.9 | |
900 | 34.4 | 42.9 | 53.3 | 66.2 | |
1000 | 39.2 | 47.7 | 59.3 | 73.6 | |
1200 | 45.9 | 57.2 | 70.6 | ||
1400 | 53.9 | 66.7 | 82.4 | ||
1600 | 61.6 | 76.2 | 94.2 |
