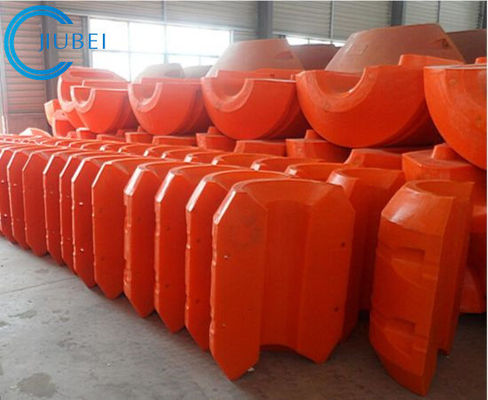

8" 4" Pipe Floats Buoys Tube Polypipe Floats Floating Dredge Pipeline

MOQ: 10 pairs
Price: USD50~500/pair
Standard Packaging: STANDARD SEA WORTHY PACKAGE
Delivery Period: 10days
Supply Capacity: 300pairs/month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JiuBei
Certification
ISO
Model Number
DN200 PE pipe float
Name:
Factory Direct Price Orange Dredging Pipe Float Plastic Pontoon Floater For Dredging
Material:
Out Shell PE, Inner Foam: PU
Color:
Orange /Yellow
Dimension:
DN60-1200mm
Connection:
Galvanised Bolts Nuts And Washers
Shape:
Clinder
Highlight:

float water buoy

,

8" 4" pipe floats

,

floating buoy tube

Product Description

Dredge Pipe Floats/HDPE Pipe Floats/Polypipe Floats/Floating Dredge/Pipeline Floats for Dredger



Polyethylene foam floats always
They consist of two halves of shell with inner and outer diameters and the total buoyancy is adjustable on request. Floats are assembled by hinges and stainless steel screws or galvanized steel screws. The buoys are filled with EPS foam whose density varies based on the hydrostatic pressure to which the buoys must withstand. The two halves are connected to the tube by four steel bolts, two on each side, to ensure optimum clamping to the tube.
CASE: Dredging
Pipeline from excavator is used to transfer material to desired area.
The pipeline is generally connected by flanges, and the flange parts are connected by bolts, which is easy to operate. Key factors for the correct selection of the float model, including the layout and arrangement of the float, the material to be transported, the length of the pipeline, etc.
Advantage:
High environmental protection: Made of food grade HDPE material, eco-friendly.
Shock Resistant: The outer shell is made of rotary molded plastic material and the inner is polyurethane foam and is shock resistant.
Virtue:
Gentle: in the event of a storm, the buoy will not be deformed.
Corrosion Resistance: The buoy shell is only made of PE material, which is resistant to corrosion with acids, alkalis and seawater.


PE Float Dimension:

Float I.D.
(mm)		Float O.D.(mm)Float
Length(mm)		Thickness
of Hull(mm)		Floater
Buoyancy (kg)
110500500798
1255008007150
1605008007145
2206007007180
2506007007175
2807009007340
31090010008550
320100010009650
35095010009600
390100010009600
400110011009900
45012001200111100
46013001300121400
49513001300121400
52013001450121500
55013001500121750
56014001500121900
60014001600132100
62014501700132400
67015001860142800
72015001860142800
73515001800142700
76018002050153100
80018002160153300
89020002400154600
94020402500164900
104024002600167000
114023002550167000
(Support customization)
