Marine Pontons Pipe Floats Buoys Orange Dredging Pipeline Supporting 4-6 Inch

Marine Pontons Pipe Floats Buoys Orange Dredging Pipeline Supporting 4-6 Inch
Marine Pontons Pipe Floats Buoys Orange Dredging Pipeline Supporting 4-6 Inch Marine Pontons Pipe Floats Buoys Orange Dredging Pipeline Supporting 4-6 Inch Marine Pontons Pipe Floats Buoys Orange Dredging Pipeline Supporting 4-6 Inch

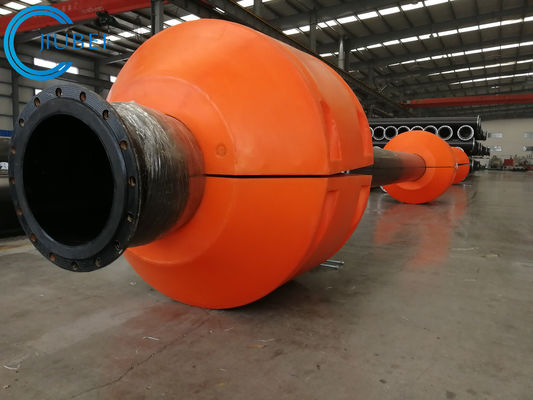

Large Image :  Marine Pontons Pipe Floats Buoys Orange Dredging Pipeline Supporting 4-6 Inch

Product Details:
Place of Origin: China
Brand Name: JiuBei
Certification: ISO
Model Number: DN400 PE pipe float
Payment & Shipping Terms:
Minimum Order Quantity: 10 pairs
Price: USD50~500/pair
Packaging Details: STANDARD SEA WORTHY PACKAGE
Delivery Time: 10days
Supply Ability: 300pairs/month

Marine Pontons Pipe Floats Buoys Orange Dredging Pipeline Supporting 4-6 Inch

Description
Name: Factory Direct Price Orange Dredging Pipe Float Plastic Pontoon Floater For Dredging Material: Out Shell PE, Inner Foam: PU
Color: Orange /Yellow Dimension: DN60-1200mm
Connection: Galvanised Bolts Nuts And Washers Shape: Clinder
High Light:

Marine Buoys

,

Buoy Floater

,

Pipeline Supporting Buoys

Factory Direct Price Orange Dredging Pipe Float Plastic Pontoon Floater For Dredging



brief introduction of Polyethylene Foam Floats:

The hull is made of medium density polyethylene material with excellent flexibility, filled with high resilience polyurethane foam inside. With reasonable structure and good performance, the MDPE floater will be the ideal replacement of the traditional steel floater for the floating dredger tubes.

Main features of Polyethylene Foam Floats:

1. Good flexibility, excellent impact resistance, especially suitable for constructions in open sea;

2. Easy to install and handle, lower cost for moving;

3. Higher corrosion resistance, longer service life, 3 times longer than steel floaters;

4. Lower cost, the cost performance is better than steel floater.

applications:

1. Used in dredging sand pipeline;

2. It can be used in dredger, dredger pipe, etc. in the sea, lake or river;

3. Special uses attach the pipes on the water used in dredger project.

Remarks:

1. 2 pieces of floater shape 1 set, 2 sets of floater shape 1 pair. 1 pair of floater could float 6meters long steel dredge pipe and 1.5m long rubber hose.

2. The floaters under the size of O. D4m*L4m are all available.



PE Float Dimension:

Float I.D.
(mm)
Float O.D.(mm) Float
Length(mm)
Thickness
of Hull(mm)
Floater
Buoyancy (kg)
110 500 500 7 98
125 500 800 7 150
160 500 800 7 145
220 600 700 7 180
250 600 700 7 175
280 700 900 7 340
310 900 1000 8 550
320 1000 1000 9 650
350 950 1000 9 600
390 1000 1000 9 600
400 1100 1100 9 900
450 1200 1200 11 1100
460 1300 1300 12 1400
495 1300 1300 12 1400
520 1300 1450 12 1500
550 1300 1500 12 1750
560 1400 1500 12 1900
600 1400 1600 13 2100
620 1450 1700 13 2400
670 1500 1860 14 2800
720 1500 1860 14 2800
735 1500 1800 14 2700
760 1800 2050 15 3100
800 1800 2160 15 3300
890 2000 2400 15 4600
940 2040 2500 16 4900
1040 2400 2600 16 7000
1140 2300 2550 16 7000
(Support customization)



Polyethylene Hull Mechanical Strength

No. Item Performance
1 Tensile Strength Mpa≥ 12
2 Elongation at break %≥ 10
3 Impact Strength KJ/㎡ 31
4 Bending Strength Mpa≥ 15.7
5

Weather Resistance

(total 3.5GJ/㎡ aging capacity)

Elongation at break%≥

10
6 OIT 200℃ mm≥ 10



Marine Pontons Pipe Floats Buoys Orange Dredging Pipeline Supporting 4-6 Inch 0

Marine Pontons Pipe Floats Buoys Orange Dredging Pipeline Supporting 4-6 Inch 1

Marine Pontons Pipe Floats Buoys Orange Dredging Pipeline Supporting 4-6 Inch 2
