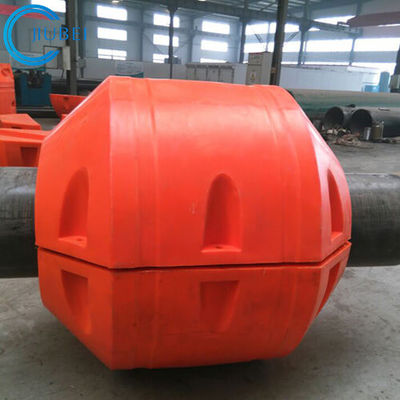

Laying PE Pipe Floats Buoys For Floating Cables Slurry Pipelines Floaters 500mm

Laying PE Pipe Floats Buoys For Floating Cables Slurry Pipelines Floaters 500mm
Laying PE Pipe Floats Buoys For Floating Cables Slurry Pipelines Floaters 500mm
Laying PE Pipe Floats Buoys For Floating Cables Slurry Pipelines Floaters 500mm Laying PE Pipe Floats Buoys For Floating Cables Slurry Pipelines Floaters 500mm Laying PE Pipe Floats Buoys For Floating Cables Slurry Pipelines Floaters 500mm Laying PE Pipe Floats Buoys For Floating Cables Slurry Pipelines Floaters 500mm

Large Image :  Laying PE Pipe Floats Buoys For Floating Cables Slurry Pipelines Floaters 500mm

Product Details:
Place of Origin: China
Brand Name: JiuBei
Certification: ISO
Model Number: DN200 PE pipe float
Payment & Shipping Terms:
Minimum Order Quantity: 10 pairs
Price: USD50~500/pair
Packaging Details: STANDARD SEA WORTHY PACKAGE
Delivery Time: 10days
Supply Ability: 300pairs/month

Laying PE Pipe Floats Buoys For Floating Cables Slurry Pipelines Floaters 500mm

Description
Name: Factory Direct Price Orange Dredging Pipe Float Plastic Pontoon Floater For Dredging Material: Out Shell PE, Inner Foam: PU
Color: Orange /Yellow Dimension: DN60-1200mm
Connection: Galvanised Bolts Nuts And Washers Shape: Clinder
High Light:

Laying Pipe Floats Buoys

,

Pipe Floats Buoys 500mm

,

Pipe Laying Floats

Buoy Floats for Floating Pipes and Cables



The hull of the dredging floater are made of PE material with good flexibility, and it is filled with high-density polyurethane foam inside. With reasonable structure and loaters are ideal to replace the steel pontoons for the floating unloading tube.

1. Good flexibility and excellent impact resistance, especially suitable for installing in the sea;

2. Light weight, easy for installation and handling, with lower cost for transportation;

3. Corrosive Resistance with longer service life, it could be 3 times longer than steel pontoons.

4. The cost and performance are more economical than steel pontoons.

5. Usually, 2 pieces of floaters are worked for 1 pair, 2 pairs for floaters are worked for 1 group, 1 group floater could float 6-meter-long steel pipe and 1.5-meter-long rubber hose.



The characteristics of Polyethylene Foam Floats:

1. The floats have lower pressure, with reasonable energy absorption;

2. When the ship is mooring alongside, the float has extensive adaptability to the ships' rolling and pitching;

3. With low density, it is convenient to install and maintenance;

4. It has wide application, and not affected by the small or big ship;

5. With high impact resistance, anti-abrasion, it will not aging in natural conditions, rather economic and durable.

Note: two pairs of floats form a group, and two pieces form a pair. A group float can float 6 meter long dredging hose. If there are special specifications, we can follow users' requirements.



PE Float Dimension:

Float I.D.
(mm)
Float O.D.(mm) Float
Length(mm)
Thickness
of Hull(mm)
Floater
Buoyancy (kg)
110 500 500 7 98
125 500 800 7 150
160 500 800 7 145
220 600 700 7 180
250 600 700 7 175
280 700 900 7 340
310 900 1000 8 550
320 1000 1000 9 650
350 950 1000 9 600
390 1000 1000 9 600
400 1100 1100 9 900
450 1200 1200 11 1100
460 1300 1300 12 1400
495 1300 1300 12 1400
520 1300 1450 12 1500
550 1300 1500 12 1750
560 1400 1500 12 1900
600 1400 1600 13 2100
620 1450 1700 13 2400
670 1500 1860 14 2800
720 1500 1860 14 2800
735 1500 1800 14 2700
760 1800 2050 15 3100
800 1800 2160 15 3300
890 2000 2400 15 4600
940 2040 2500 16 4900
1040 2400 2600 16 7000
1140 2300 2550 16 7000
(Support customization)
