Product Details:
|
| Name: | PE100 Dredging HDPE Pipe For Sand/slurry Discharging | Material: | PE 100 |
|---|---|---|---|
| Connection: | Galvanised Bolts Nuts And Washers | Accessories: | HDPE STUB END AND STEEL BACK RING |
| LENGTH: | CUSTOMIZED | MOQ: | 100m |
| Highlight: | dredging floating pipeline 1200mm,Floating Pipeline Dredger 1200mm,Dredging Floating Pipeline 48 inch |
||
Dredging Pipeline Polyethylene Dredging Pipe HDPE Pipe Dredging Delivery Hose Water Pipe
UHMWPE Coated Steel Pipe:
UHMWPE is a new type of engineering thermoplastic with a molecular weight above 3 million viscosity. Ultra-high molecular weight polyethylene pipe has outstanding performance compared with ordinary HDPE pipe, such as super high wear resistance, impact resistance, excellent internal pressure resistance, lip stress cracking resistance. Intrinsically safe, self-lubricating, non-stick and low temperature and excellent chemical resistance.
UHMWPE Steel and Plastic Composite Pipe is scientifically constructed from ultra-high molecular weight polyethylene (UHMWPE) pipe and carbon steel pipe. It uses flanged carbon steel pipe as outer tube and UHMWPE pipe as inner tube.
Specifications range from ID200mm to 1200mm.
Characteristics of UHMWPE Coated Steel Pipe:
Having the advantages of UHMWPE pipe and steel pipe, the wear-resistant steel-plastic composite pipe has the characteristics of high wear resistance and high pressure.
It is widely used in water supply and drainage, dredging and reclamation, transporting sand and slurry, coal ash in thermal power plant, mine waste and high pressure coal slurry, etc.

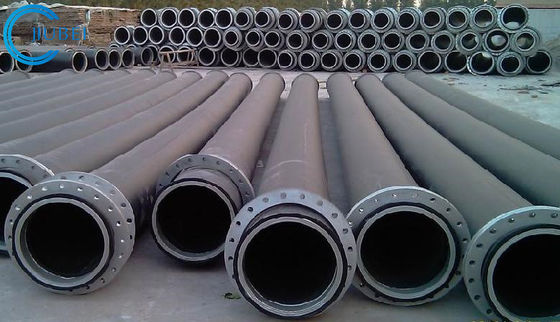

Connection:
It is flanged and fixed with bolts and nuts for use as a pipeline. It has the advantages of fast connection, easy disassembly, high strength, good sealing ability, etc.
Dimension of HDPE dredging pipe:
|
Outside Diameter(mm) |
Wall thickness(mm) | ||||
| SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | |
| 0.4Mpa | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
| 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | |
| 800 | 30.6 | 38.1 | 47.4 | 58.9 | |
| 900 | 34.4 | 42.9 | 53.3 | 66.2 | |
| 1000 | 39.2 | 47.7 | 59.3 | 73.6 | |
| 1200 | 45.9 | 57.2 | 70.6 | ||
| 1400 | 53.9 | 66.7 | 82.4 | ||
| 1600 | 61.6 | 76.2 | 94.2 | ||
