Product Details:
|
| Name: | PE100 Dredging HDPE Pipe For Sand/slurry Discharging | Material: | PE 100 |
|---|---|---|---|
| Connection: | Galvanised Bolts Nuts And Washers | Accessories: | HDPE STUB END AND STEEL BACK RING |
| LENGTH: | CUSTOMIZED | MOQ: | 100m |
| Highlight: | Shore HDPE Pipe,Dredging HDPE Pipes Discharge,Shore Dredging HDPE Pipes |
||

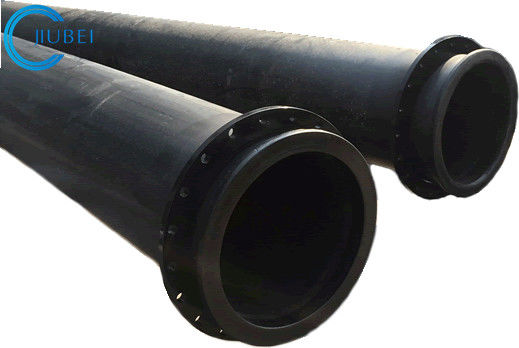

Dredging HDPE Pipes Discharge Pipes Dredge Pipe
Floating/Shore HDPE pipe is made of high density polyethylene resin. It has high rigidity and strength with low strength but high mechanical strength. It has very high wear resistance, the abrasion rate is 4-8 times that of steel pipe, the service life can reach more than five years. It is very light, therefore easy to install and transport, saving construction time.
total length ≤12m; Working pressure and inner diameter can be customized.
HDPE pipes, with or without flanges, with O-ring groove and rotating flanges. Ideal in combination with a tube float for mud and sand dredging.
AVAILABLE IN:
• PE80 and PE100 classes
• Pressure ratings PN 3.2 to PN25
• Various diameters
• All lengths up to 20 meters
WELDABLE HDPE FLANGE
AVAILABLE IN:
• PE80 and PE100 -Classes
• Pressure levels from PN 3.2 to PN 25
• Various diameters
FLANGE
Steel flanges in various designs and international standards (ISO, JIS, DIN, ASTM, etc.)
adapted to the outside diameter of HDPE pipes.
Curves HDPE
Curves HDPE for edges, available in different thicknesses, diameters and angles.
Y-CONNECTOR
HDPE Y-connector for edges, available in different thicknesses and diameters.
Dimension of HDPE dredging pipe:
|
Outside Diameter(mm) |
Wall thickness(mm) | ||||
| SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | |
| 0.4Mpa | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
| 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | |
| 800 | 30.6 | 38.1 | 47.4 | 58.9 | |
| 900 | 34.4 | 42.9 | 53.3 | 66.2 | |
| 1000 | 39.2 | 47.7 | 59.3 | 73.6 | |
| 1200 | 45.9 | 57.2 | 70.6 | ||
| 1400 | 53.9 | 66.7 | 82.4 | ||
| 1600 | 61.6 | 76.2 | 94.2 | ||
