Product Details:
|
| Name: | Rubber Suction Hose | Connection: | Steel Flange |
|---|---|---|---|
| Material: | NBR With Coil Cloth Reinforced And Steel Wire Reinforced | Length: | Customer Made |
| Highlight: | oil suction hose pipe,oil suction and delivery hose,oil suction discharge hose |
||

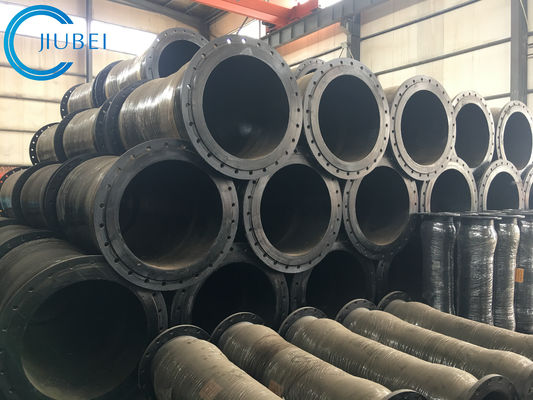

Different Size Water or Oil Suction and Discharge Rubber Hose
Dredger suction pipes are designed for picking up sediments with dredgers. It is mainly used for river and port construction, reclamation and dredging to increase the dredging distance of water. Flexible and easy to install, the dredge pipes are abrasion and kink resistant thanks to the synthetic materials combined with the spiral steel reinforcement wire. The smooth inside of the tubes prevents clogging and damage from abrasives.
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||
