Product Details:
|
| Name: | Rubber Suction Hose | Connection: | Steel Flange |
|---|---|---|---|
| Material: | NBR With Coil Cloth Reinforced And Steel Wire Reinforced | Length: | Customer Made |
| Highlight: | Rubber Suction Hose for Fire Brigade,Oil Suction Discharge Rubber Hose,Rubber Suction Hose 12meters |
||
Industrial Hydraulic Rubber Suction Discharge Flexible Hose
PRODUCT DETAILS
River and coastal subsidence is not a new phenomenon in Vietnam and is used for dredging seaports.
1. Hose characteristics
* Hose length: 2-12 meters
* Metal fittings
* Specialized in stream dredgers
* Compatible with all kinds of industrial pumps
* High durability, impact resistance, pressurized water, limited deformation
* Suitable for high and low terrain, curves and switchbacks.
2. Classification and manufacture of rubber hoses
Hoses include pressure and suction pipes for river dredging.
exhaust pipe structure:
* rubber liner is rubber with high abrasion resistance;
* Laminated polyamide coating with excellent durability adheres tightly to the elastic layer and helps hose resist
working pressure, impact;
* The rubber layer of the cover is made of materials resistant to salt water and high-impact working environments.
Suction hose:
* Highly abrasion-resistant rubber coating;
* Laminated Polyamide liner and steel ring are a tight fit, allowing the hose to withstand working pressure and deformation.
* The rubber layer of the liner is made of materials that are resistant to salt water and the elements.
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||

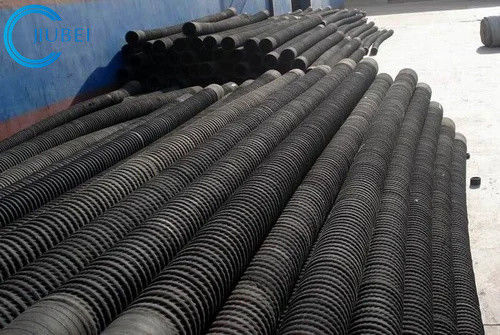

Detail images of 10inch sand/slurry dredging Rubber Suction Hose:
