Product Details:
|
| Name: | Rubber Suction Hose | Connection: | Steel Flange |
|---|---|---|---|
| Material: | NBR With Coil Cloth Reinforced And Steel Wire Reinforced | Length: | Customer Made |
| Highlight: | Rubber Suction Hose manufacturers,1" Rubber Suction Hose,Suction Hose Rubber |
||
Flexible Rubber Slurry Discharge Suction Dredger Marine Floating Dredging Hose
Dredge Suction Pipe Purpose: Used for suction and discharge of seawater, manure, gravel, sand and other dredging materials. It can be connected to another pipeline and reduce shaft vibration.
Tube: Abrasion and aging resistant synthetic rubber.
Armor: Rope wire and coiled steel wire for high tensile and torsional strength.
cover: weather and aging resistant synthetic rubber, wear-resistant
temperature range: -20 to +85℃
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||

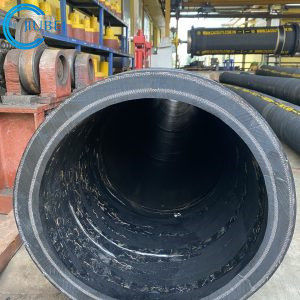

Detail images of 10inch sand/slurry dredging Rubber Suction Hose:
